To safeguard heavy metal shipments, oversized building components, and high-value architectural hardware, manufacturers must implement flawless Russian Railways TU CM-943 Loading Standards alongside strict bilateral documentation control.

1. Mandatory Railway Weight Controls & Axle Center of Gravity Limits

Railway authorities enforce non-negotiable weight ceilings that supersede standard ocean carrier tolerances. Under Russian railway operating rules, axle load imbalances can lead to high-speed derailments during transit across broad-gauge networks. Achieving SMGS Railway Freight Container Compliance requires strict adherence to physical limits:

• Maximum Gross Weight (RZD Threshold): Total gross weight (Tare + Cargo Net) must never exceed 30.48 metric tons.
  • 20GP Containers: Container tare averages 2.2 tons, restricting cargo net weight to <= 28.28 tons.
  • 40GP / 40HQ Containers: Container tare averages 3.7 to 3.9 tons, capping cargo net weight strictly at <= 26.5 tons.

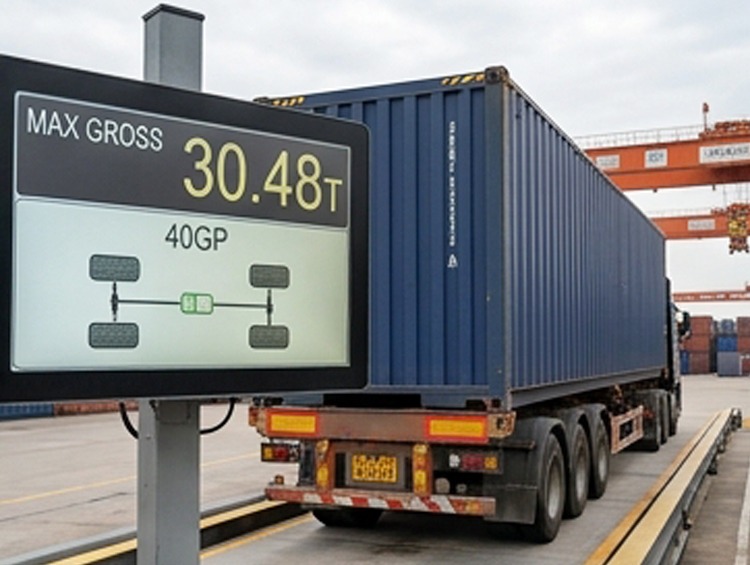

• Zero-Tolerance Border Weighbridges: Border railway stations re-weigh containers on certified static and dynamic weighbridges. If gross weight exceeds the declared threshold, local authorities reject transit and refuse onsite unloading/re-weighting. Shippers face immediate border turnbacks.
• Strict Verified Gross Mass (VGM): The weight variance between physical scale weights and the SMGS consignment note must not exceed 3%. Discrepancies are treated as intentional misdeclaration, triggering administrative penalties.
• Three-Dimensional Center of Gravity (CoG): The center of gravity must remain aligned near the geometric container center. Longitudinal deviation must not exceed 600 mm, while lateral (crosswise) deviation must not exceed 100 mm. One-sided asymmetric cargo distribution is strictly banned.

2. Physical Container Structural Inspection & Tamper-Proof Sealing

Rail cars experience violent longitudinal shunting shocks and continuous vibration across thousands of kilometers. Loading into substandard containers inevitably invites border rejection:

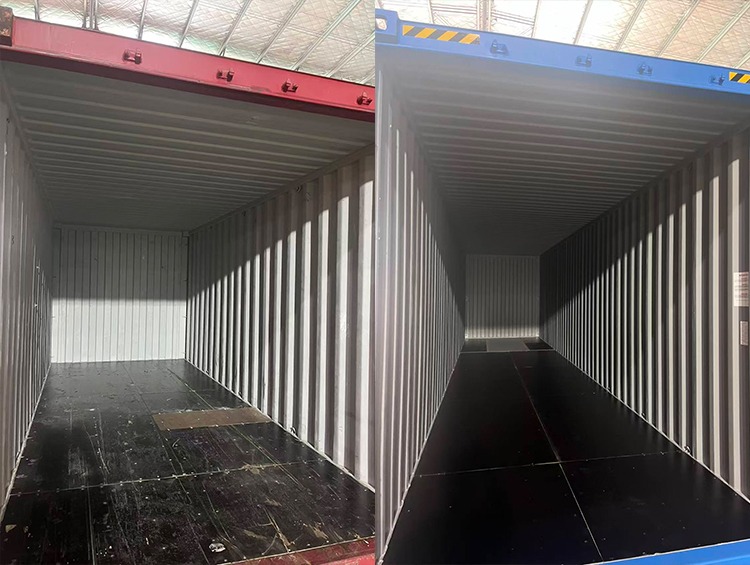

• Pre-Loading Structural Audit: Inspectors must reject containers exhibiting micro-cracks, roof pinholes, floor delamination, bent locking bars, or degraded EPDM door gaskets. Russian border checkpoints conduct independent light-penetration inspections; damaged units are grounded, accruing demurrage.
• ISO-Grade Rail Selection: Shippers should mandate high-grade ISO dry vans certified for multimodal rail transit rather than aged coastal marine units.
• 8-Point Cam Keeper & Seal Verification: Ensure all eight locking cam keepers on the double doors engage flush into the upper and lower sill retainers. Once sealed, high-security bolt seals must be cross-checked against the bill of lading, packing list, and SMGS consignment note—a single typographical mismatch between documentation and physical seal numbers results in border customs impoundment.

3. Cargo Blocking, Bracing & RZD Anti-Shifting Mandates (ТУ ЦМ-943)

At border interchange points, containers are transloaded between Chinese standard-gauge (1435mm) flatcars and Russian broad-gauge (1520mm) rail platforms. This mechanical crane transfer, combined with rail shunting, subjects cargo to extreme dynamic loads. Executing compliant China-Europe Railway Cargo Blocking and Bracing under ТУ ЦМ-943 demands specialized techniques:

• Strict Ban on Inflatable Airbags: Inflatable dunnage air bags are strictly prohibited as the primary restraint system on Russian rail routes.
• Prohibition of Direct Floor Nailing: Nailing wooden chocks directly into the container floor plywood is forbidden by rail carriers and triggers immediate penalty and offloading.
• Approved Restraint Architecture: Securement must rely on structural lumber bracing, engineered friction wedges, tensioned steel strapping, and heavy-duty wire ropes anchored directly into the container's perimeter D-rings.
• Heavy Steel Profiles & Industrial Doors: High-density metal goods—such as structural steel, sectional door guide tracks, and torsion spring assemblies—must be strapped in bundled modules with high-tensile steel bands, incorporating protective corner angles to prevent edge abrasion against the container walls.
• End-Door Bulkhead Barrier (End Shield): A reinforced timber bulkhead must be erected across the doorway threshold to prevent cargo from shifting outward against the door leaves during emergency braking.
• Mandatory Photo Documentation: Logistics teams must archive step-by-step photographic records: empty container condition, progressive loading stages, intermediate dunnage, completed doorway bulkhead, and final bolt seal application with legible serial numbers.

4. ISPM-15 Phytosanitary Wood Rules & Severe Cold Climate Protection

Operating across Siberia exposes cargo to sub-zero climates dropping below -30°C, followed by rapid condensation during warehouse transfers. Handling Russia Ocean and Rail Transshipment Securing requires comprehensive biological and climate defense:

• ISPM-15 Compliance: Every piece of solid wood packaging—including supporting pallets, dunnage timbers, skids, and bracing chocks—must bear a clear, legible IPPC heat treatment (HT) stamp. Untreated raw timber results in immediate incineration or re-export of the entire container. Engineered plywood and MDF do not require fumigation.
• Prohibited Packing Materials: Agricultural straw, raw hay, discarded newspaper, or uncertified organic fillers are strictly banned under Russian quarantine regulations.
• Sub-Zero Condensation & Anti-Rust Protocols: Rapid temperature drops produce heavy container internal "cargo rain." Cover container floors with polyethylene moisture barriers, apply anti-corrosion VCI barrier films to exposed metal surfaces, and distribute high-absorption calcium chloride industrial desiccant bags throughout the upper cargo envelope.

5. Russian-Language Shipping Marks & Precise Customs Documentation

Russian customs operations rely heavily on Cyrillic shipping manifests. Inconsistencies between paper documentation and exterior crate markings cause prolonged warehouse audits:

• Bilingual Marking Strategy: Outer labels should feature Russian as the primary language, supplemented by English.
• Mandatory Mark Fields:
  • Consignee full legal entity name in Russian, sales contract number, and destination rail station/city;
  • Package sequence (e.g., 3/25), exact Gross and Net weights in kilograms, and product model name;
  • Country of Origin: СДЕЛАНО В КИТАЕ (MADE IN CHINA).
• International Handling Symbols: Explicit pictograms indicating center of gravity, lifting sling points, top orientation, and fragile mechanical sections.
• EAC Mark of Conformity: For electromechanical equipment, industrial doors, and motor operators, verify that Customs Union EAC (TR CU) certification is completed and filed prior to container dispatch.

6. Multimodal Comparison: Rail Express vs. Deep Sea Route

Key operational differences between multimodal rail and deep-sea transit routes:

• Weight Enforcement: China-Europe Railway Express enforces ultra-strict limits (max gross 30.48t, no onsite unloading permitted), whereas Ocean Freight (via St. Petersburg / Vladivostok) follows standard maritime conventions with port-managed tolerances.
• Bracing Standards: Rail Express is strictly governed by ТУ ЦМ-943 (no airbags, direct floor nailing banned, timber bulkheads mandatory), whereas Ocean Freight accepts standard maritime lashing with airbags permitted as secondary void fillers.
• Transshipment Risk: Rail cargo faces severe mechanical shock during broad-gauge crane transloading (1435mm to 1520mm), whereas direct ocean calls involve minimal intermediate re-handling.
• Documentation: Rail requires an SMGS Consignment Note with character-for-character matching against the packing list and shipping marks, compared to the standard Ocean Bill of Lading (B/L).
• Climate Hazards: Siberia rail transit endures extreme dry cold down to -30°C and severe condensation, while ocean lanes face salt-spray humidity and marine atmospheric condensation.

7. Pre-Dispatch Field Checklist for Factory Loading Teams

• Verify container tare plate and confirm gross weight will not exceed 30.48 metric tons.
• Inspect empty container interior under bright sunlight for floor splits, odor, rust, and light leaks.
• Position heavy cargo at the bottom center; verify longitudinal offset <= 600 mm and lateral offset <= 100 mm.
• Secure all items with steel strapping and timber blocking; do not use airbags or floor nails.
• Erect heavy-duty wooden bulkhead across the inner door threshold.
• Confirm all solid lumber carries clear IPPC (ISPM-15) treatment stamps.
• Audit outer packaging marks for correct Cyrillic text, gross/net weights, and СДЕЛАНО В КИТАЕ.
• Capture high-resolution archival photos: empty container, mid-loading, finished bulkhead, and applied bolt seal.
• Verify the bolt seal serial number matches the packing list, invoice, and SMGS document character-by-character.

Summary & Technical Consultation

Executing compliant export container loading for the Russian market requires disciplined engineering, precise weight calibration, and strict adherence to international rail standards. Implementing structural bracing and verified packing prevents catastrophic border delays while protecting product integrity.
