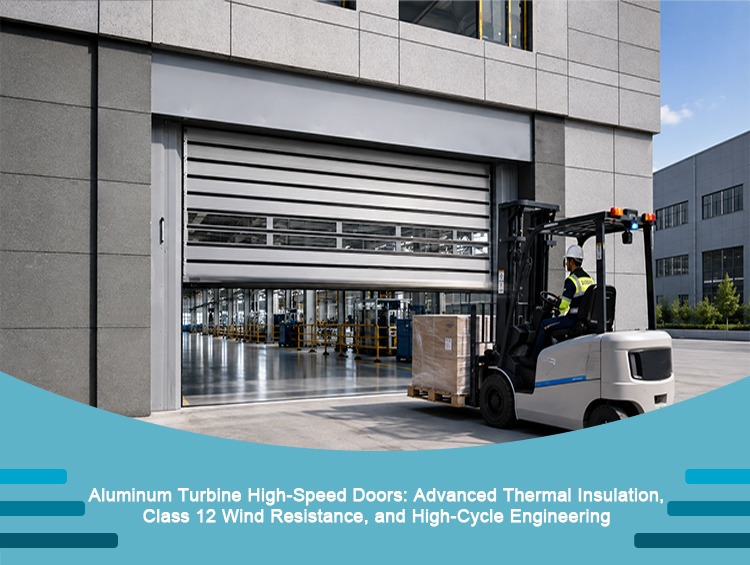

Aluminum Turbine High-Speed Doors: Advanced Thermal Insulation, Class 12 Wind Resistance, and High-Cycle Engineering

In demanding industrial sectors—ranging from cold-chain logistics hubs and clean pharmaceutical labs to high-traffic commercial underground garages—facility engineers require entrance systems that unify high-frequency durability, extreme windload resistance, and rigid security. Installing advanced Aluminum Turbine High-Speed Doors delivers an all-in-one perimeter and interior barrier, significantly reducing HVAC energy loss while eliminating material handling bottlenecks.

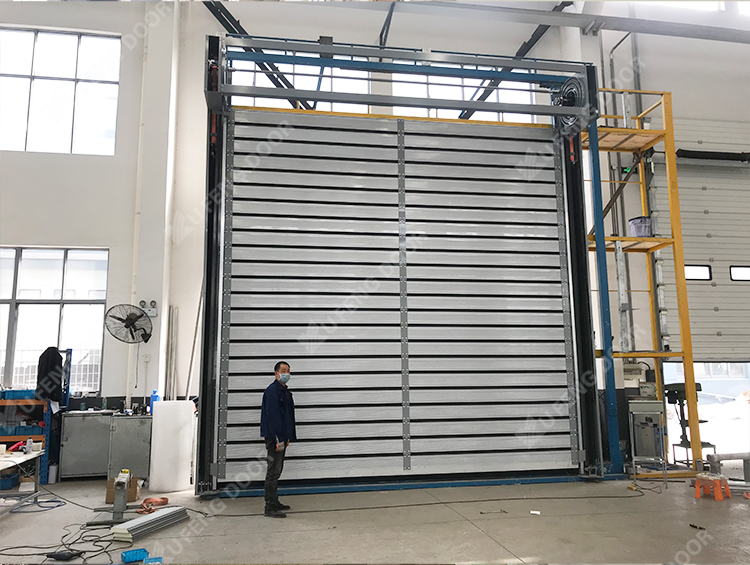

Manufactured with heavy-duty double-skin aluminum profiles and frictionless spiral track kinematics, these doors provide unmatched cycle life and high-speed operation for high-demand commercial infrastructure.

1. Thermal Insulation Engineering & Extreme Weatherproofing

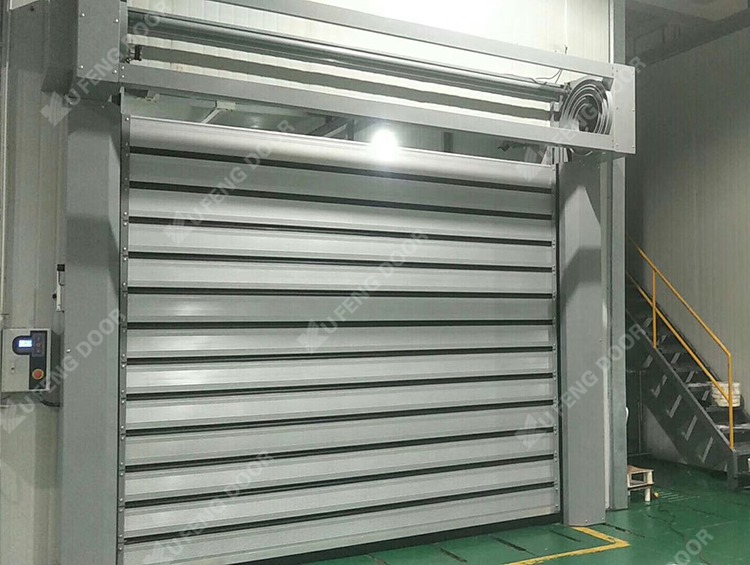

Thermal control and airtight barrier integrity represent the primary defense against escalating facility energy costs. Engineered with double-walled aluminum slat architecture, Thermal Insulated Fast Spiral Shutters provide industry-leading insulation:

• 48 kg/m³ High-Density Polyurethane Core: Precision high-pressure PU foam injection achieves an outstanding heat transfer coefficient of 1.1 W/(m²·K). For temperature-critical cold storage and climate-regulated workshops, optional 50mm heavy-duty insulated panels maximize thermal retention.
• Full Perimeter EPDM Weatherseals: Integrated multi-point EPDM rubber side seals, reinforced top header seals, and flexible bottom astragals block airborne particulates, drafts, and moisture infiltration.
• Class 12 Wind Rating: Structurally reinforced interlocked aluminum slats and heavy-duty guide tracks withstand Class 12 wind loads (Class 12 Wind Rated Industrial Doors), making them the premier choice for exterior factory gates and exposed perimeter envelopes.

2. Kinematic Turbine Drive & Maintenance-Free Operating Mechanism

Standard roll-up doors suffer from mechanical friction and slat grinding during coiling. Aluminum turbine doors utilize non-contact spiral track engineering to deliver quiet, high-velocity performance:

• Non-Contact Spiral Turbine Tracks: As the door elevates, precision curved turbine tracks guide the slats into a spiral coil without panel-to-panel friction, preserving surface finishes and eliminating operational vibration.
• 1,000,000+ Cycle TPU Rollers & PEEK Bushings: High-wear TPU polyurethane rollers paired with advanced PEEK (Polyetheretherketone) shaft bushings offer superior self-lubricating, maintenance-free, and corrosion-proof operation for over one million uninterrupted cycles (PEEK Bushing High Cycle Rapid Doors).
• Variable Frequency Drive & Fast Automation: Specialized VFD servo motor controls enable rapid lifting speeds up to 1.5–2.0 m/s. Integrated with dual-loop ground magnetic induction loops and smart microwave radar sensors, the door enables uninterrupted transit for high-frequency forklift fleets.

3. Certified Multi-Layer Safety & Broad Industrial Adaptability

Personnel safety and seamless adaptability across critical manufacturing scenarios are foundational to Xufeng Door's engineering philosophy:

• Dual Safety Protection System: Standard infrared photoelectric sensors (with optional 1.5m active light curtains) combined with bottom wireless safety edge airbags instantly trigger auto-reverse upon obstacle detection. A manual emergency release lever ensures immediate egress during unexpected power failures.

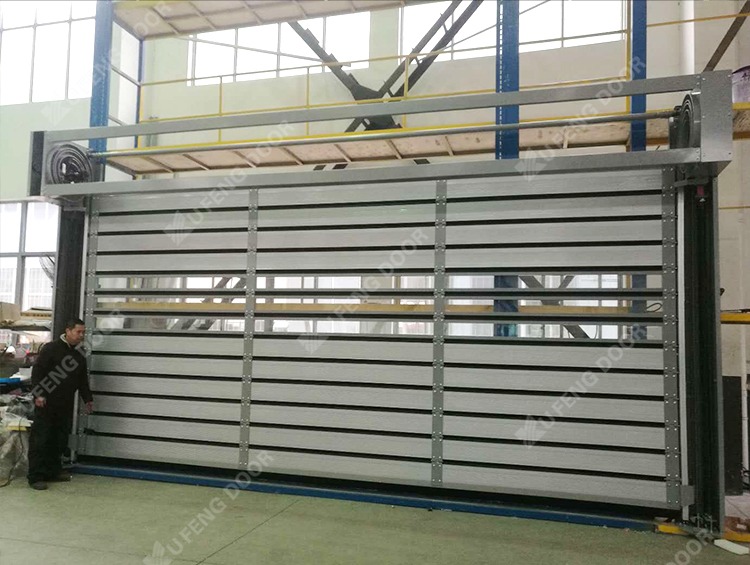

• Cleanroom & Food/Pharma Clean Zones: For sealed pharmaceutical and electronics workshops, customizable full-vision acrylic windows provide optical clarity while maintaining stringent hygiene and dust-free containment (Cold Chain Cleanroom Speed Doors).
• Heavy-Duty Logistics & Underground Garages: High-torque variable-speed drives withstand continuous 1,000+ daily cycles, making them ideal for high-traffic parkades and manufacturing hubs.

Summary & Technical Consultation

Upgrading to aluminum turbine high-speed doors ensures rapid transit efficiency, minimizes facility HVAC thermal loss, and provides robust exterior security.

Looking to configure high-durability entrance solutions for your facility? Contact the engineering team at Xufeng Door or send your project drawings through our Contact Us page for tailored OEM/ODM quotations.
