When outfitting a commercial facility or warehouse, selecting the right door curtain architecture directly impacts operational budget, climate regulation, and physical security. Plant managers and building owners often balance initial expenditure against long-term thermal efficiency.

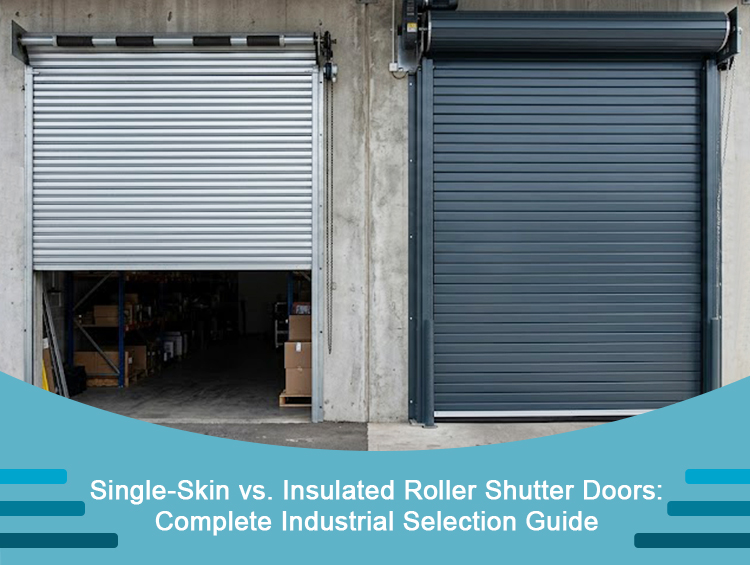

Understanding the structural engineering, insulating properties, and performance trade-offs between Single Skin Roll Up Doors and Insulated Roller Shutter Doors is essential for making an informed purchasing decision.

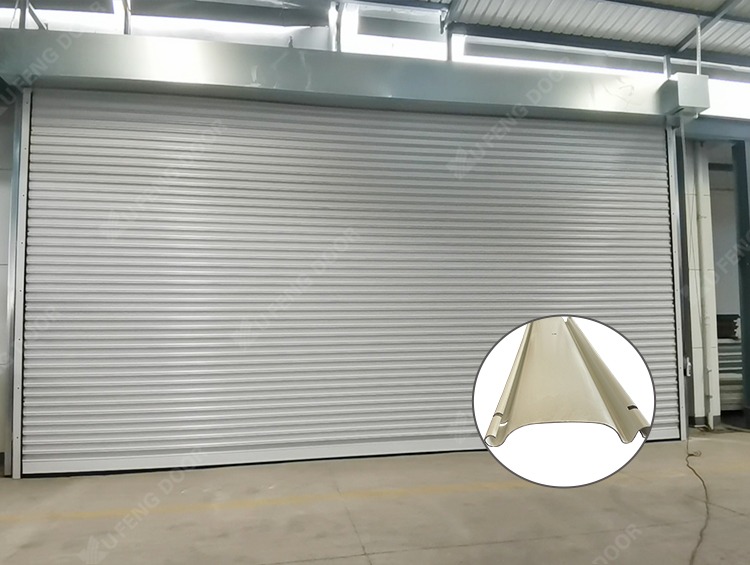

1.Single-Skin Steel Roll-Up Doors: Economical & Lightweight Solutions
Single-skin roller doors consist of cold-rolled galvanized steel or iron slats linked together without internal insulation core materials.
Key Technical Advantages
Cost Efficiency: Offers the lowest upfront capital investment, making it highly cost-effective for large perimeter openings where insulation is not required.
Low Motor Load & Compact Roll Profile: Lightweight curtain construction reduces wear on drive motors, allows faster lifting speeds, and requires minimal overhead clearance above the lintel.
Simple Maintenance: Straightforward modular slat structure allows quick, localized repairs if mechanically damaged by site traffic.
Natural Ventilation Options: Ideal for unconditioned spaces, parking structures, and internal partition zones requiring basic airflow.
Structural Limitations
Zero Thermal Barrier: Lacks heat transfer resistance ($R$-value), resulting in significant energy loss in temperature-controlled spaces.
Acoustic & Environmental Leakage: High acoustic transmission and minimal perimeter seals allow external noise, water ingress, and dust infiltration.
Basic Security & Wind Resistance: Thin gauge metal provides standard entry deterrence but may flex under high wind pressures or targeted break-in attempts.

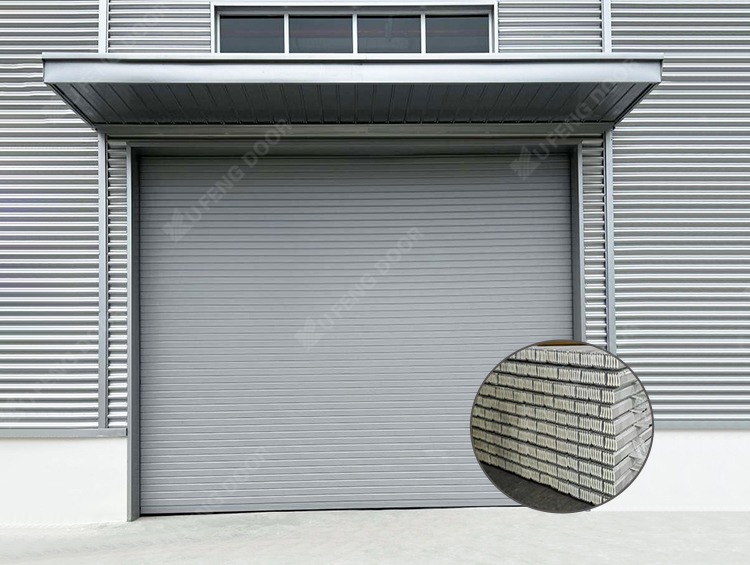

2.Insulated Sandwich Roller Shutters: Thermal Efficiency & Structural Strength
Insulated roller shutters feature a double-skin steel or aluminum profile filled with high-density Polyurethane Foam Infilled Shutters core, forming a rigid composite curtain profile.
Key Technical Advantages
Superior Thermal Insulation: Effectively reduces conductive thermal transfer, dramatically lowering HVAC energy costs for cold storage, heated workshops, and climate-controlled distribution hubs.
Acoustic Dampening: Multi-layer foam core significantly attenuates external ambient noise and reduces operating vibration during open/close cycles.
Enhanced Wind Resistance & Security: Double-walled interlocked profiles deliver exceptional torsional rigidity, resisting flex during severe wind storms and offering high penetration resistance.
Airtight Perimeter Sealing: Integrated brush and EPDM rubber bottom seals protect against wind-driven rain, dust accumulation, and pest intrusion.
Structural Limitations
Higher Initial Investment: Manufacturing complexity and material volume result in higher upfront procurement costs compared to single-skin alternatives.
Increased Structural Load: Heavy-duty curtain weight requires higher-torque motor operators and reinforced wall anchors.
Re-Coil Diameter: Thick double-skin slats require a larger roll diameter above the doorway when fully raised.
3. Comparative Selection Matrix
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Conclusion

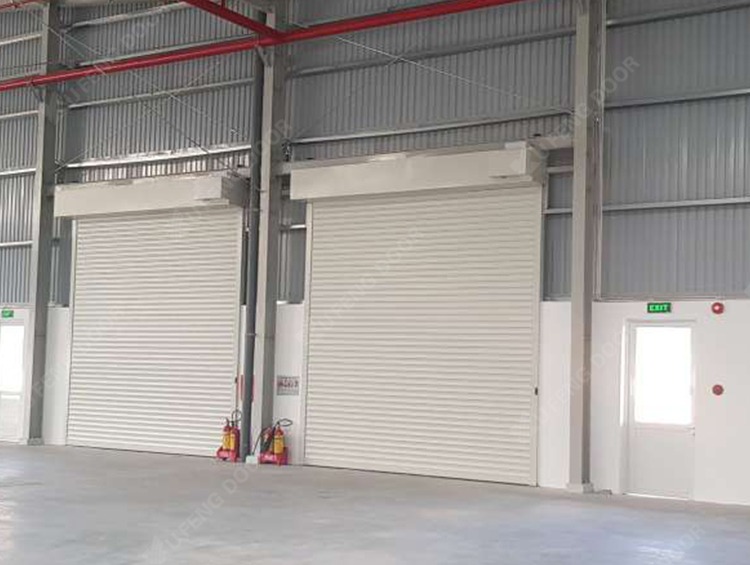

Selecting between single-skin and sandwich insulated shutters comes down to thermal control and environmental exposure. For unheated storage or interior zoning, single-skin options maximize cost savings. For external envelope openings, climate control, and soundproofing, upgrading to thermal efficient industrial doors yields substantial energy savings over the door’s lifespan.

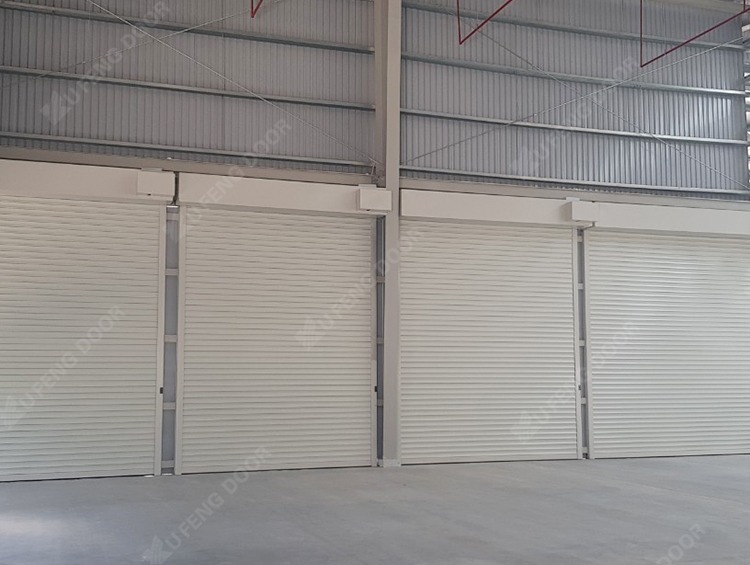

Contact Xufeng Door today to evaluate your building requirements and specify custom Commercial Security Shutter Doors engineered for your operational demands.
