product type | overhead sectional industrial door |
insulation industrial door application | industrial ware house, logistic warehouse overhead sectional door |
insulation industrial door open style | Standard overhead lift, High lift, Vertical lift |
insulation industrial door including | 2"galvanised hardware, 3"galvanised hardware, Torsion spring |
insulation industrial door safety optional | Spring broken device, Cable broken device, Photocell, Radar, Geomagnetic, Pull rope, Wall switch |
overhead sectional industrial door material | Glavanised steel, PU foam ( DOW) CFC free,PE protective film |
overhead sectional door steel thickness | 0.326mm, 0.45mm thickness |
1.0mm thickness reinforcement sheet | |
overhead sectional door panel color | Standard: RAL9002 Offwhite |

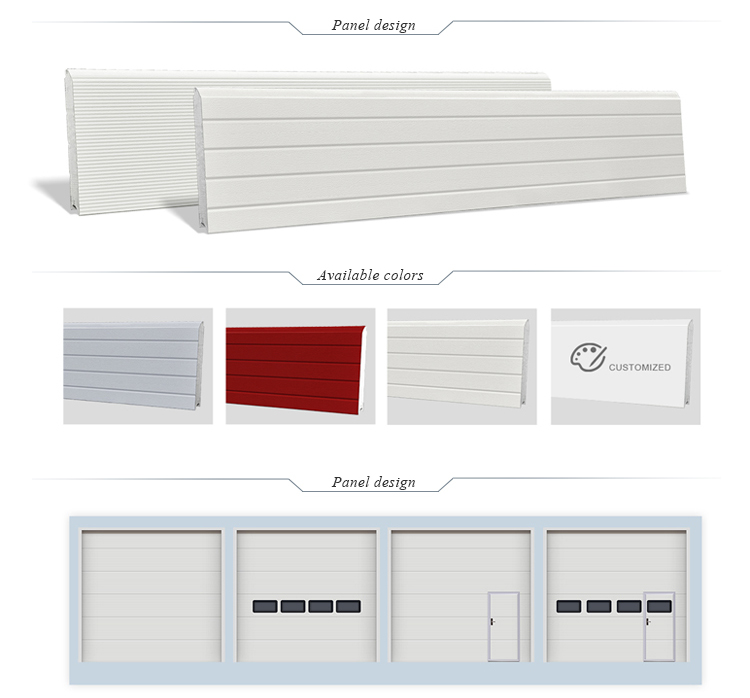

overhead sectional door panel design | Finger-protection |
factory sectional door panel weight | 9.2kg/m2-11.2kg/m2 |
overhead sectional industrial door thickness | 40+2mm |
overhead sectional industrial door density | 45±2kg/m3 |
factory sectional door max. Length | 11.8m for 40HQ |
factory sectional door panel width | 500mm |
insulation industrial door surface treatment | finished |
embossed orange peel | |
factory sectional door opener | side industrial motor |
overhead sectional door voltage | 110V/220V/380V |
overhead sectional industrial door warranty | 3-5years |
insulation industrial door certificate | ISO9001:2015 CE TUV |

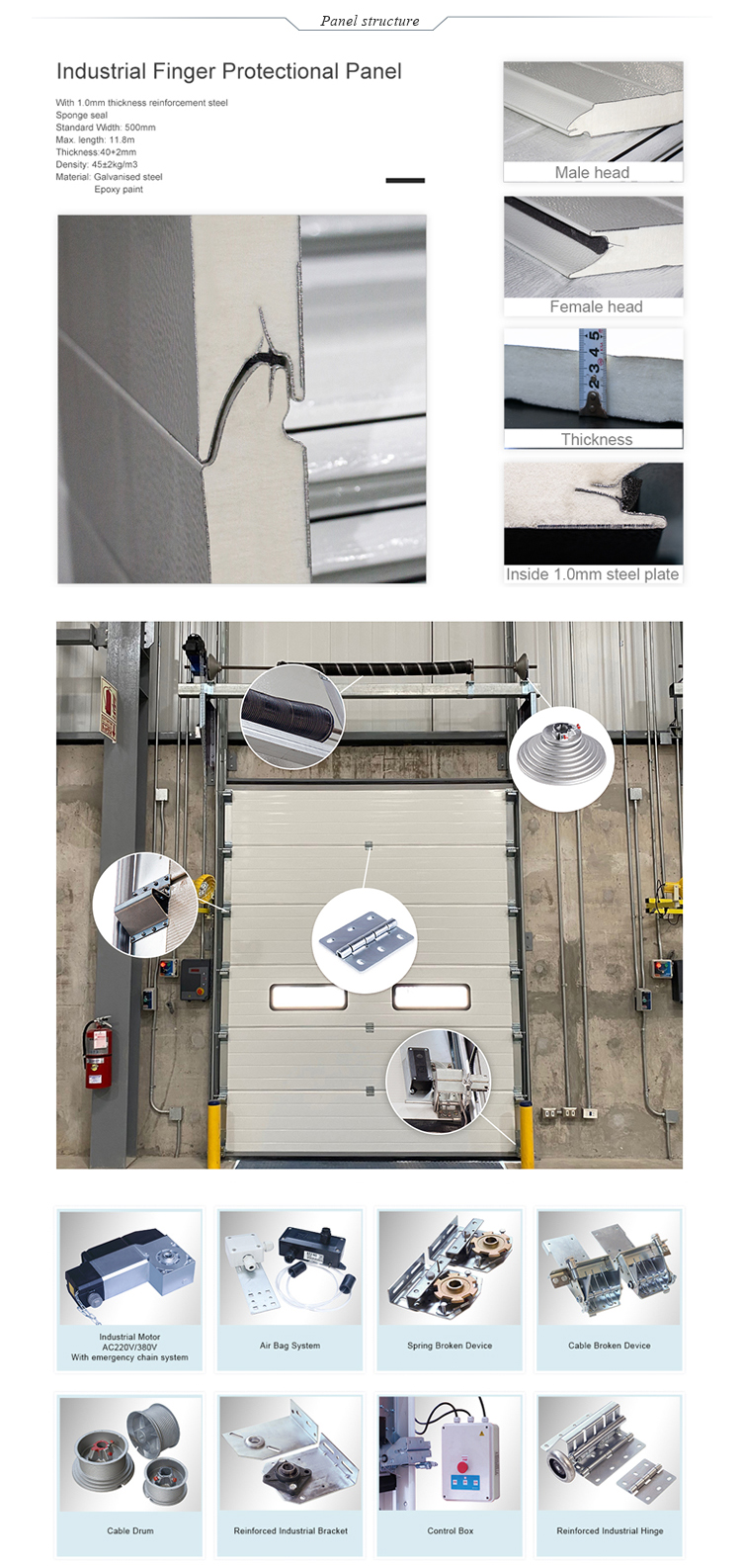

Factory Sectional Door Industrial Finger Protectional Panel
With 1.0mm thicknedd reinforcement steel
Sponge seal
Standard Width: 500mm
Max.length: 11.8m
Thickness: 40mm,60mm,80mm
Density:45±2kg/m3
Material: galvanised steel epoxy paint

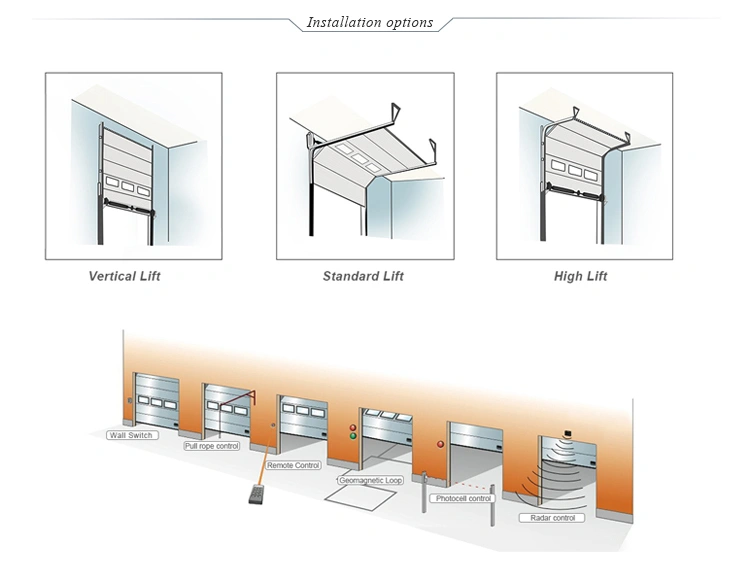

Installation options: Vertical lift, Standard lift, High lift
>>Wall switch
>>Pull rope control
>>Remote control
>>Geomagnetic control
>>Photocell control
>>Radar control
