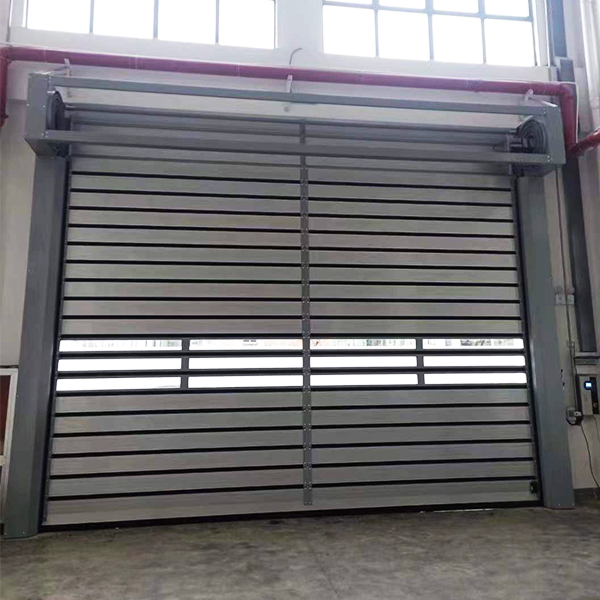

Aluminum rolling fast door, as a new-type metal industrial aluminum fast door, combines the features of high efficiency, insulation, energy saving, security, wind resistance and environmental protection.
Aluminum fast door opening speed is up to 1.8m/s, making the product sprial fast rolling door applicable for indoor and outdoor logistics channels requiring frequent high-speed traffic.
Aluminum fast door open speed: 0.6m/s~2.0m/s (adjusatble)
Sprial fast rolling door close speed: 0.6m/s (adjustable)
aluminum rolling fast door panel color | White RAL9010,White aluminium RAL9006,other colors can be customized |
aluminum rolling fast door max. size | W:9000mm,H:8000mm |
aluminum rolling fast door open speed | 0.6m/s~2.0m/s (adjusatble) |
aluminum rolling fast door close speed | 0.6m/s (adjustable) |
aluminum fast door standard thickness of door panel | 44mm |
aluminum fast door thermal insulation of door panel | K≤1.5W/(m²·K) |
aluminum high speed door finishing | anodizing+organic coloring |
sprial fast rolling door wind load resistance | 32m/s (≤12F) |
sprial fast rolling door working voltage/frequency | 380V/14A/50Hz |
aluminum high speed door material | aluminum alloy |
aluminum fast door service life | > 500,000 times |

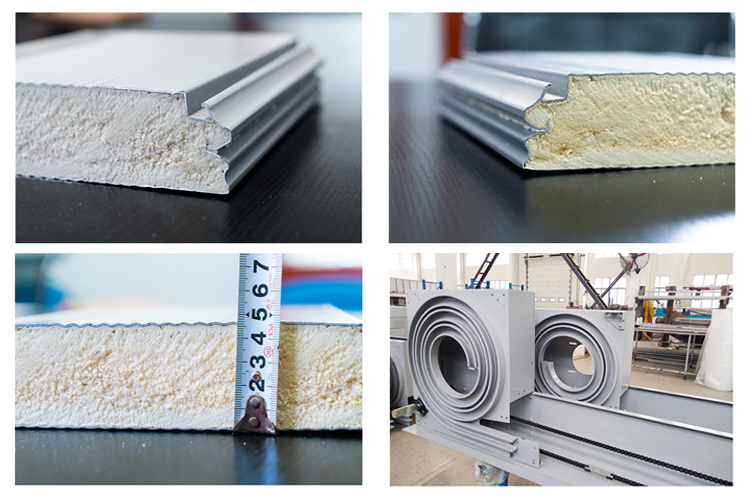

The aluminum fast door panel structure:
The aluminum rolling fast door panel is a separate assembly structure.
The aluminum fast door plate of the broken bridge heat insulation,multi-layer sealing rubber strip, muffler bearing hinge, guide wheel and other parts.
The standard thickness of the sprial fast rolling door panel is 44mm, the wind strength can reach 12 levels, and the interior is filled with polyurethane industrial thermal insulation materials.
Sprial fast rolling door can be customized according to customer needs.

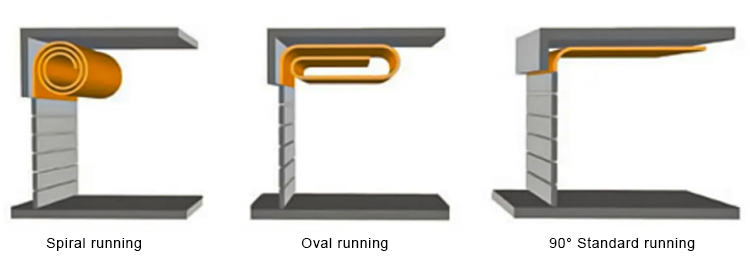

Guide track Mode:
According to the site installation structure of aluminum rolling fast door can be divided into : Spiral running, Oval running, 90° Standard running

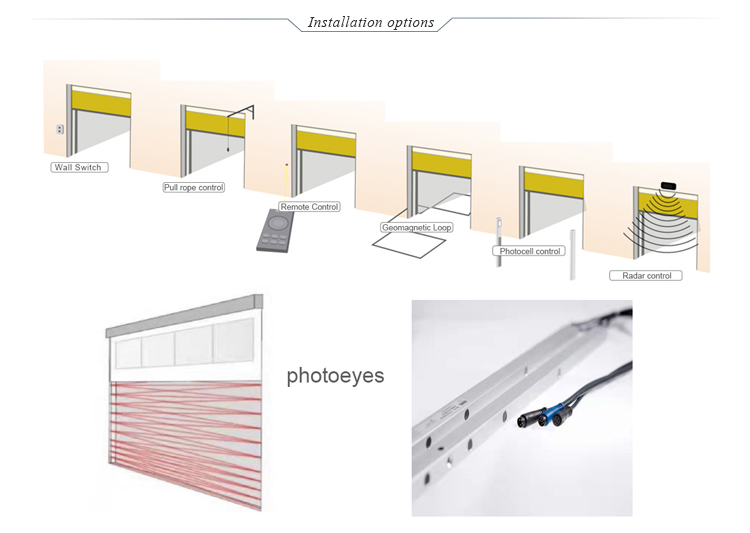

Aluminum sprial fast rolling door installation options:
Wall Switch,pull rope control,remote control,geomagnetic loop, photocell control,radar control
