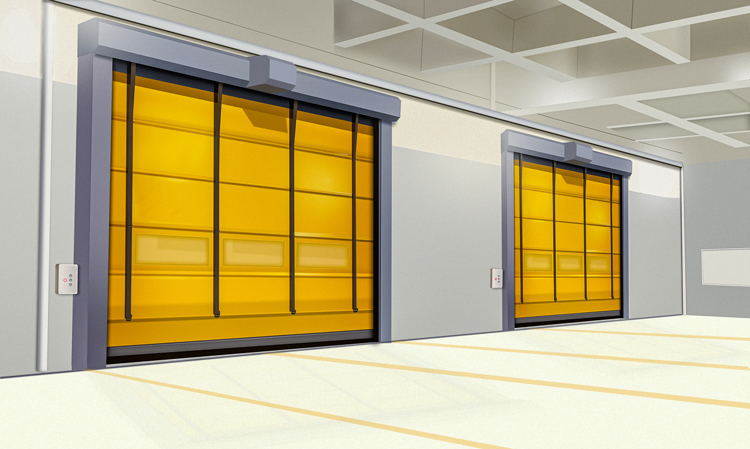

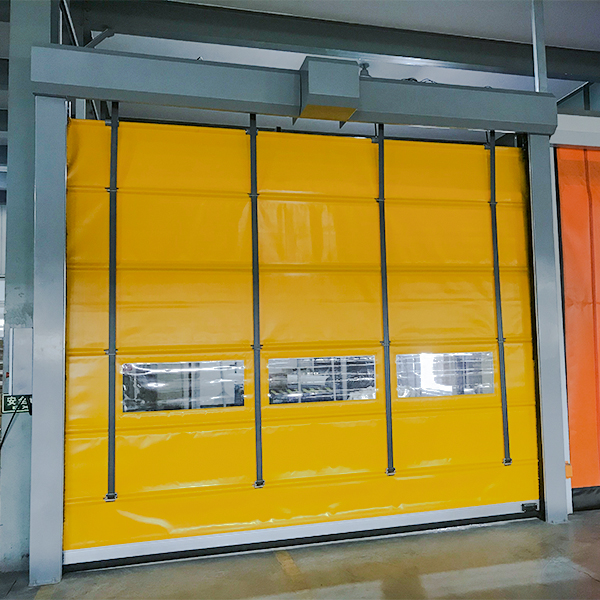

Pvc fast stacking doors folding door is made up of high quality pvc curtain, hardware and motor.
Pvc fast stacking doors have insect, wind, dust, odor, lighting, and other functions.
As far as possible to meet the high performance logistics and clean places.
Pvc fast stacking doors have the adyvantages of saving energy, improving the air conditioning effect,high-speed automatic closing, improving the efficiency of the action.
| product name | high speed pvc stacking door |
| maximum door size | W:10000mm,H:10000mm |
| pvc fast stacking doors operation speed | 0.6-1.2 m/s |
| pvc fast stacking doors operation way | remote control, access control, magnetic loop,radar, pull rope switch |
| pvc fast stacking doors emergency operation | available with manual crank |
| pvc fast stacking doors curtain thickness | 0.8mm-1.2mm |
| high speed pvc stacking door hardware material | frame and cover box - galvanized steel / 304 stainless steel |
| track guide - galvanized steel/304 stainless steel/aluminum extrusion | |
| wind resistance bar-aluminum extrusion | |
| curtain-sioen high density polyester fiber sheet | |
| vision panel - 1.5mm thick transparent pvc | |
| pvc fast stacking doors motor power | 0.75kW,1.5kW,2.2kW |
| input voltage | 220V/50HZ,380V/50HZ |
| control box | IP55 Box with PLC&Inverter; Pre-wired and factory tested |
| control box finish | powder coated steel /304SS |
| high speed pvc stacking door safety performance | infrared beam protection system |
| folding stacking door allowable frequency | 2 times/min, Inverter opening 2500-3000 times/day |
Material properties of folding stacking door curtain:
High speed pvc stacking door gram weight: 1050土30 g/m2
High speed pvc stacking door tensile warp direction: >4000N/5am
High speed pvc stacking door tensile weft direction: >4000N/5am
High speed pvc stacking door tear meridional direction: >500N
Folding stacking doors tearing latitudinal direction: >520N
Folding stacking doors welding stripping: >100N
Folding stacking doors elongation: >20%
Folding stacking doors applicable temperature: -30°C~70°C
Folding stacking doors eat resistance: 3s from the fire automatically extinguished
High Speed PVC Stacking Door Color Options:
Red RAL3002,Blue RAL5002,Yellow RAL1023,Orange RAL2004,Gery RAL9022, Transparent
Other color high speed pvc stacking doors can be comsized.

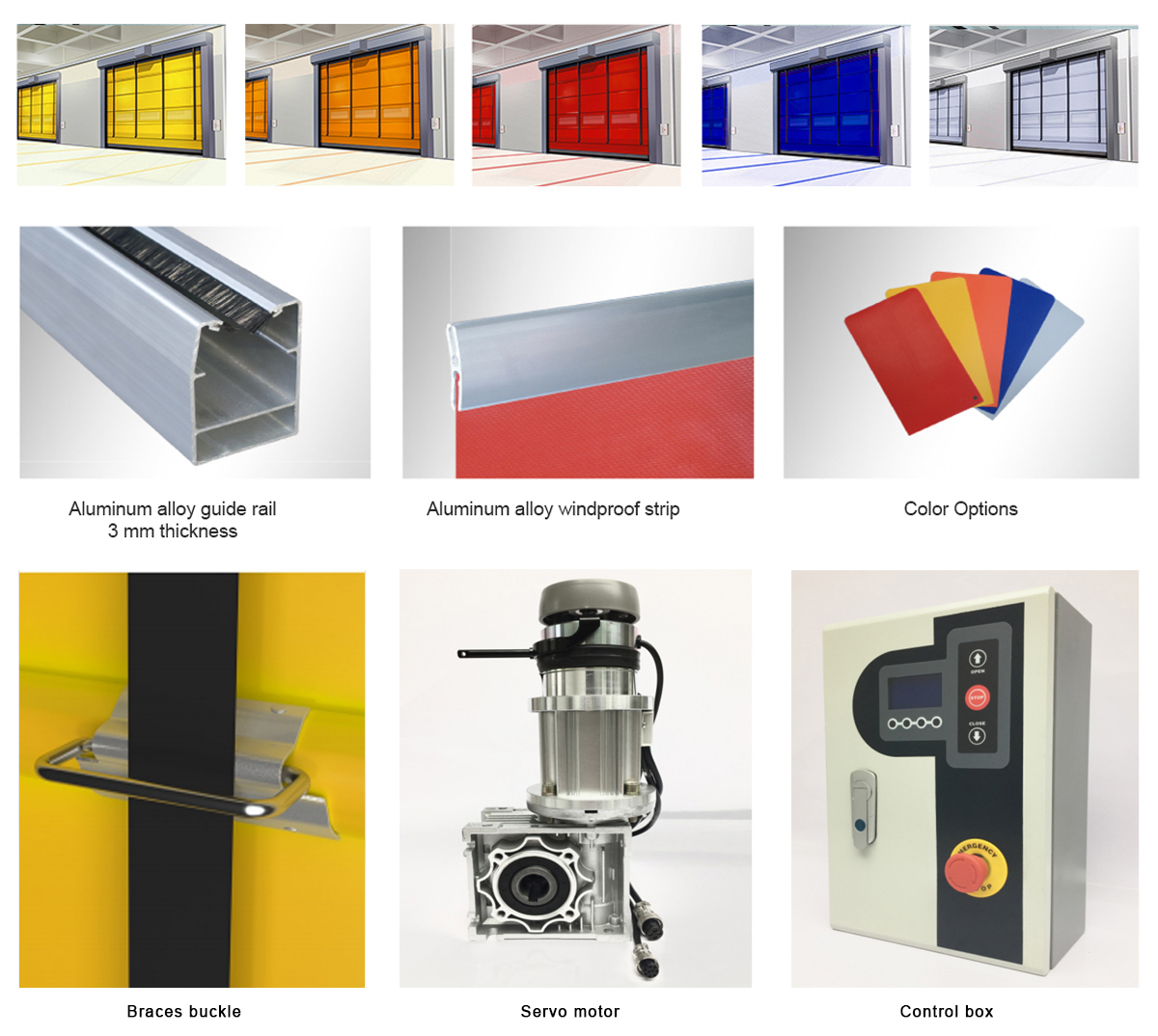

High Speed PVC Folding Stacking Door Frame Options:
Galvanized Steel, Stainless Steel

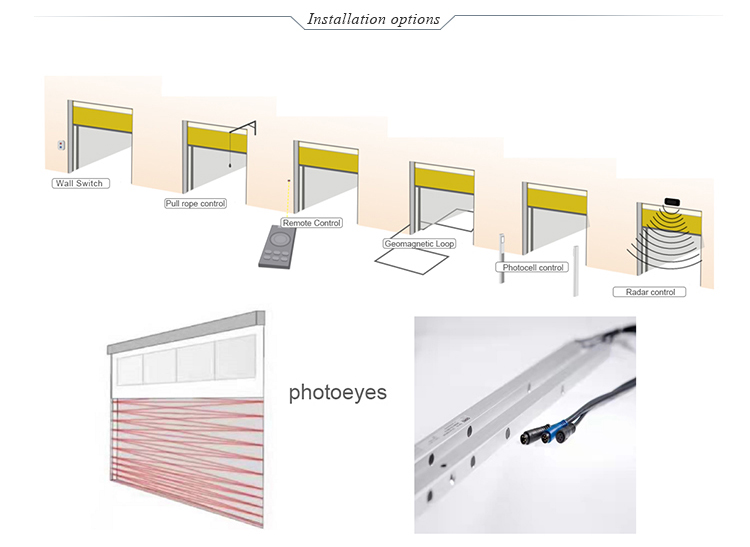

Pvc fast stacking door operation options:
01-Wall switch
02-Pull rope control
03-Remote control
04-Geomagnetic loop
05-Photocell control
06-Radar control
Folding stacking doors can also be combined with other doors to open, such as industrial doors, rolling doors,etc.
