Smart Garage Door Motors

Model NO.: XFHP
Delivery: EXW,FCA,FOB
Minimum order quantity: 2 sets
Supply Ability: 10000 sets / Month
Country of Origin: China
Stock Time: 35 Days

Quantity:

Product Description
Application Description

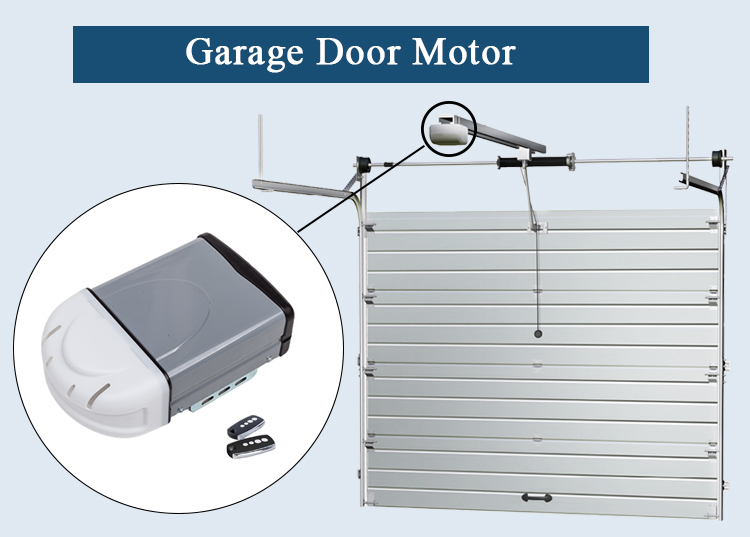

Smart garage door motors are motors equipped with advanced technology and sensors to automate and improve the functionality of garage doors.

These smart garage door motors make it easier to open and close garage doors, and they also provide additional features such as remote control, smartphone integration, and security features.

Advantages

1. Metal cover and bottom
2. 9W light
3. Automatic closing
4. Built-in WiFi (Optional)
5. Electronic limit switch
6. Soft start and soft stop
7. Bounce off resistance
8. Manual release handle in case of power failure
9. Motor:20,000 cycles testing
10. Photo sensor/wall switch can be added

Description

Model	1/2HP* (800N)	3/4HP* (1000N)
Rated Current	0.7A	1.1A
Smart Garage Door Motor Power	154W	240W
Max,Door Area Advised	8m²-14m²	14m²-18m²
Smart Garage Door Motor Voltage	24V/DC
Smart Garage Door Motor Rated Voltage	AC120V
Smart Garage Door Motor Rated Frequency	60Hz
Ambient Temperature	-20℃~+45℃
Rated Operation Time	4 min
Rated Operation Speed	150-180mm/s
Radio Frequency	433.92MHz
Remote Control Code	Rolling Code
Range(In Open Areas)	50m
Opener Size	400mm250mm132mm
Package Size	530mm275mm160mm

Accessories

Transmitter	T22, 2pcs
Drive of Rail	Chain or Belt
Type of Rail	Single rail; 2 sectional rail; 3 sectional rail
Length of Rail	3000, 3300, 3600, 3900, 4200mm
Smart Garage Door Motor WiFi (Optional)	Optional
Customization (Optional)	Support

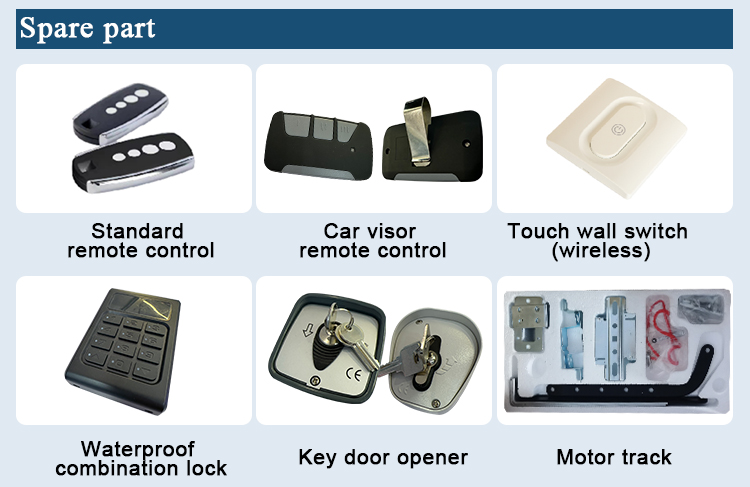

Smart Garage Door Motor Wifi Part Option

1.Smart garage door motor wifi remote control: standard remote control,car visor remote control,old type 2-button remote control

2.Smart garage door motor wifi wall switch: touch wall switch (wireless),wall switch (wired 4 m)

3.Smart garage door motor wifi waterproof combination lock (IP54)

4.Smart garage door motor wifi key door opener

5.Smart garage door motor wifi external remote receiver: we have three different types of external remote receiver

6.Smart garage door motor wifi infrared beam (without wire and bracket)

Smart Garage Door Motor Wifi Package

1.package size: 450mm*226mm*205mm

2.For sample order :the motor ,the steel rail are in one big package. One opener includes:one motor,one 3.3 meters steel rail,2 remotes, fixed brackets and screws.

Smart garage door motors can be applied in a wide range of scenarios, depending on the specific needs and preferences of users.

Residential Garages: Smart garage door motors are a great addition to residential garages, providing convenience, safety, and security.
With remote control or smartphone integration, you can open and close the garage door from anywhere in the house or even while away from home.

Apartments and Condominiums: In multi-unit buildings such as apartments and condominiums, smart garage door motors can be used to control access to individual garages.
Residents can use a key fob, code, or smartphone app to operate their own garage door, while the building management can monitor and control the access of all garage doors.

Commercial Garages: Smart garage door motors are also suitable for commercial garages, such as those found in shopping malls, hospitals, or office buildings.
Smart garage door motors can be integrated with building management systems to provide remote monitoring and control, as well as track the movement of vehicles and manage access permissions.

Automatic Gates: In addition to garage doors, smart motors can also be used to automate gates leading to private driveways or estates.
This allows for secure and convenient access control, with the ability to open and close the gate remotely or based on specific triggers such as vehicle detection.

Customized Solutions: Smart garage door motors can also be integrated into customized solutions for unique applications.
For example, they can be combined with home automation systems to create a fully automated smart home, or they can be integrated with security systems to provide real-time alerts and remote monitoring capabilities.

Overall, smart garage door motors can be applied in a wide range of scenarios to enhance convenience, safety, and security in various settings.
