XUFENG mechanical dock leveler telescopic dock levelers are designed for your most demanding dock operations, offering exceptional durability, reliability and the lowest price servce.
XUFENG telescopic dock levelers hydraulic telescopic unloading platform has a solution for any type of freight-handling need.
| telescopic dock leveler loading capacity | 6T/8T/10T |
| hydraulic dock leveler equipment dimension | L2000mm*W2300mm*H550mm |
| hydraulic dock leveler pithead dimension | L2000mm*W2330mm*H560mm |
| telescopic dock leveler adjustable range | 300/-300mm |
| telescopic dock leveler adjust time | up≤16S,down≤10S |
| hydraulic dock leveler main plate thickness | 6mm/ 8mm Bao Steel |
| hydraulic dock leveler lip plate thickness, size | 12mm,400mm |
| telescopic unloading platform motor brand | italy |
| telescopic unloading platform motor power | 0.75kW, 380V, 50Hz |
| telescopic unloading platform hydraulic oil pressure | 8Mpa±1Mpa |
| telescopic unloading platform hydraulic tank capacity | 6L |
| hydraulic dock leveler working temperature | -20℃~+50℃ |
| hydraulic dock leveler bumper | L380*W180*H100mm |
| hydraulic dock leveler available color | blue, green. |
| hydraulic dock leveler working lift | ≥20,000 times |

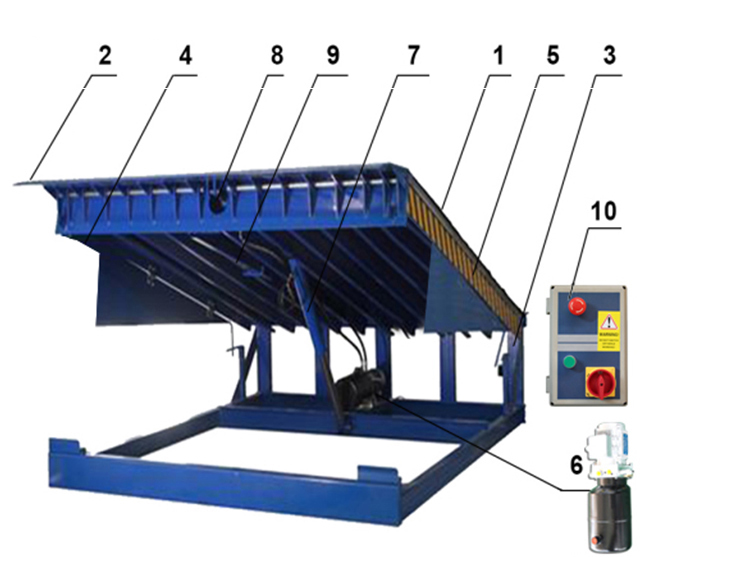

Telescopic unloading platform hydraulic dock leveler explosion diagram:
1. Main Plate 2. Lip Plate
3. Steel Frame 4. Side Fender
5. Warning band 6. Hydraulic pump
7. Lifting oil cylinder 8. Lip plate oil cylinder
9. Support for maintaince 10. Control system

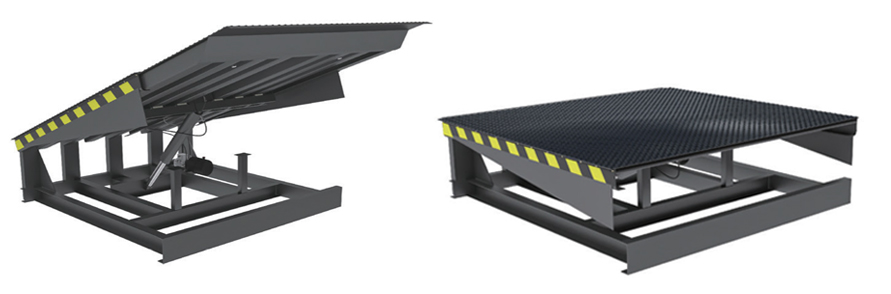

The function of telescopic dock leveler:
Telescopic dock levelers use the hydraulic principle, the motherboard cylinder lifts the platform panel, the small cylinder pushes the mouth plate out,
and the mouth plate is hoisted to the rear of the truck through the weight reduction of the loading and unloading platform,
so as to establish an interworking bridge between the warehouse and the truck.
Telescopic dock leveler specfication:
| Width | Length | Height | Pit Width | Pit Length | Pit Height | Selescoping Length |
| 2000mm | 2000mm | 600mm | 2030mm | 2000mm | 610mm | 650mm |
| 2000mm | 2300mm | 600mm | 2030mm | 2300mm | 610mm | 980mm |
| 2000mm | 2500mm | 600mm | 2030mm | 2500mm | 610mm | 980mm |
| 2000mm | 3000mm | 600mm | 2030mm | 3000mm | 610mm | 980mm |
| 2000mm | 3500mm | 600mm | 2030mm | 3500mm | 610mm | 980mm |
| 2000mm | 4000mm | 600mm | 2030mm | 4000mm | 610mm | 980mm |
| 2000mm | 5000mm | 600mm | 2030mm | 5000mm | 610mm | 980mm |
Note:Please refer to customization for other telescopic unloading platform dock leveler specifitions
Telescopic unloading platform cylinder dock leveler load and type selection:
| Dynamic Load | Static Load | Thickness of Main Plate | Support Profile | Lip Plate | Base Frame | Range of Forklift |
| 6 Ton | 8 Ton | 6mm | 4mm U-Steel | 14x400+8x700 | 100 Beam Channel | 2.5 Ton |
| 8 Ton | 10 Ton | 8mm | 4mm U-Steel | 16x400+8x700 | 100 Beam Channel | 3.0 Ton |
| 10 Ton | 12 Ton | 8mm | 12# I-Beam | 16x400+8x700 | 100 Beam Channel | 3.5 Ton |
| 14 Ton | 16 Ton | 10mm | 12# I-Beam | 16x400+8x700 | 100 Beam Channel | 3.5 Ton |

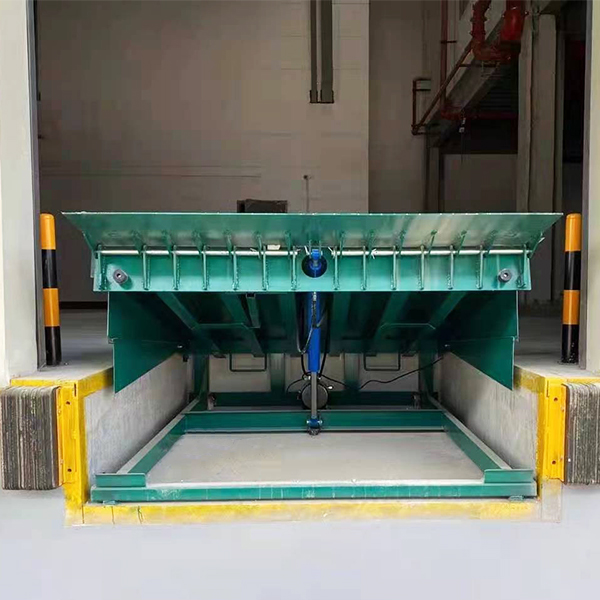

Telescopic unloading platform details:

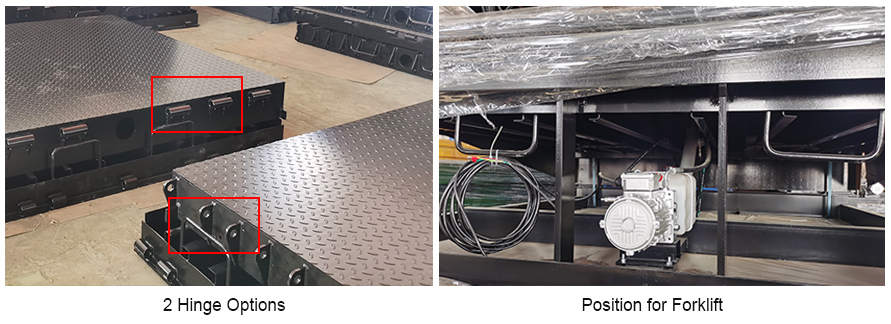

two hinge options,position for forklift
