Neglecting periodic servicing accelerates fatigue across critical dynamic parts—culminating in noisy rattling, premature drive motor burnout, track derailment, or catastrophic spring failure. Following this comprehensive engineering guide allows facility managers and homeowners to maintain mechanical equilibrium, preserve safety mechanisms, and determine when to service components independently versus scheduling certified professional intervention.

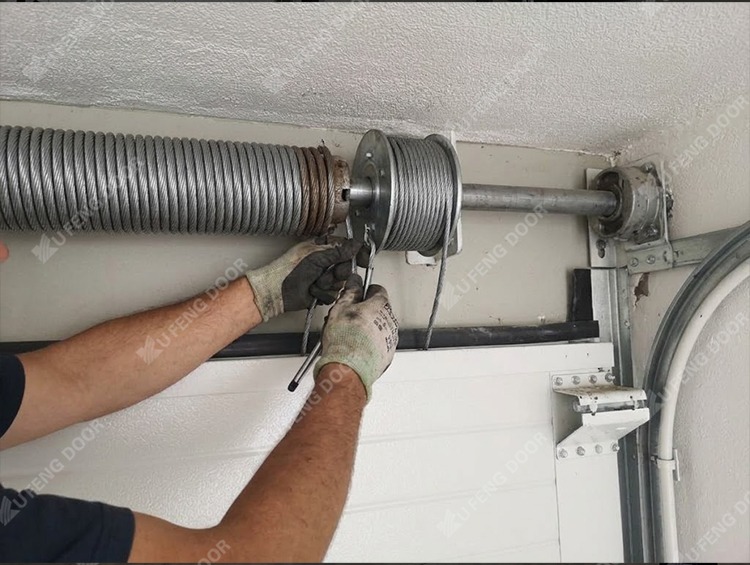

1. Counterbalance Dynamics: Spring and Cable Inspection Protocols

The counterbalance system carries more than 90% of the door’s active structural deadweight. Without balanced counter-spring tension, the electric motor opener will suffer mechanical overexertion:

• Torsion Springs & Extension Springs Check: Inspect the torsion springs mounted along the central header shaft (or side extension springs) once every quarter. Look closely for surface rust oxidation, gap spacing along the coils, or physical metal fatigue cracking.
• High-Strength Lift Cables: Examine the galvanized steel cables anchored from the bottom brackets up to the aluminum winding drums. Check for frayed wires, kinks, unwinding strands, or edge corrosion.
• CRITICAL ENGINEERING SAFETY WARNING: Counterbalance springs and bottom corner brackets store lethal mechanical energy under extreme torque. Never attempt to tighten, unbolt, or replace torsion springs or bottom lift cables with DIY household tools. If fraying, severe sagging, or unbalanced coil tension is identified during your Garage Door Spring and Cable Inspection, lock out the electric opener immediately and enlist certified technicians utilizing regulated winding bars.

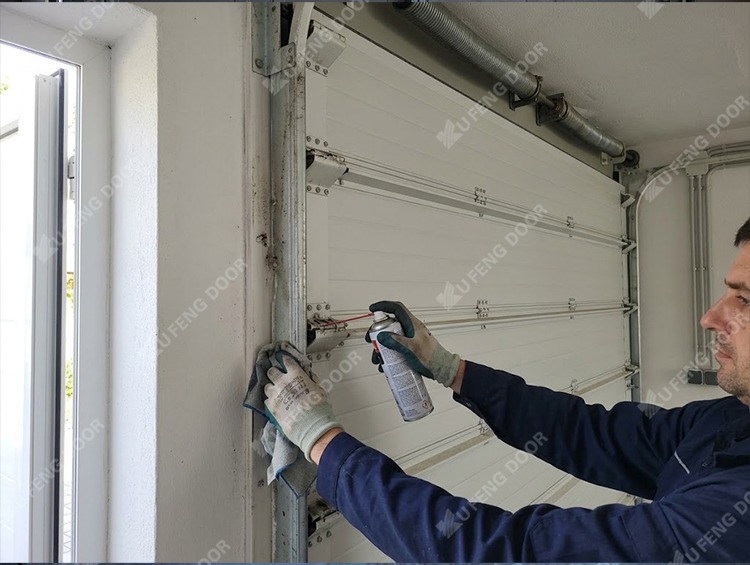

2. Mechanical Motion Components: Roller Track Cleaning & Lubrication

Smooth, whisper-quiet garage door operation relies entirely on frictionless track kinematics and free-spinning roller bearings:

• Track Channel Debris Removal: Over time, airborne dust, insects, and grit collect inside the vertical and horizontal guide profiles. Wipe down the inner concave track channels twice yearly using a dry or slightly damp microfiber cloth. Technical Rule: Never apply grease or thick automotive lubricants inside the track channels. Grease mixes with ambient particulate matter to form an abrasive grinding paste that causes rollers to skid, flat-spot, and bind. Tracks must always remain clean, dry, and free of oily residues.
• Overhead Door Roller Track Lubrication: Inspect the steel or heavy-duty nylon guide rollers every six months. Check for wobbly bearings, uneven plastic cracking, or bent roller stems. Apply a specialized dry-film silicone spray or white lithium grease with a narrow nozzle directly onto the internal roller ball bearings and hinge pivot pins.
• Hardware Fastener Torque: Dynamic motor cycling inevitably vibrates structural brackets loose. Systematically tighten all intermediate hinges, top roller brackets, track hanging angles, and motor ceiling mounts using an impact driver or socket wrench, avoiding over-torquing against the insulated panel skins.

3. Active Safety Configurations: Obstacle Detection & Emergency Override

Modern garage door motors incorporate dual active safety systems mandated to prevent severe crushing accidents and ensure access during utility outages:

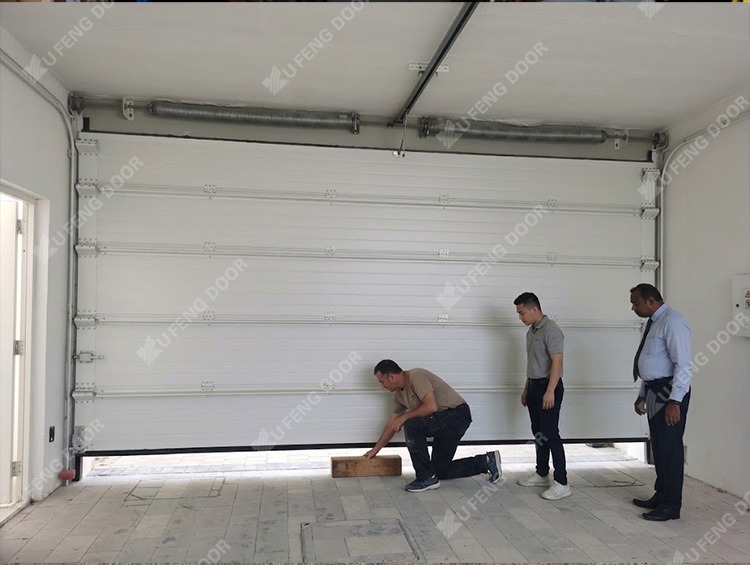

• Contact Auto-Reverse Testing (Mechanical Force): Conduct a monthly contact test. Lay a flat 2x4 wooden block or solid wooden board flat on the floor in the center of the doorway threshold. Trigger the door to close. Upon making contact with the wood block, the door must immediately stop and reverse back to the fully open position within two seconds. If the door fails to reverse, calibrate the motor's downward travel force limit according to the operator manual.
• Non-Contact Infrared Photoelectric Eyes: Inspect the photo-eye sensors located no more than 6 inches above the garage floor on both side tracks. Ensure the optical lenses are clean and aligned (solid LED indicator lights). Wave an object across the invisible light beam while the door is traveling downward; the curtain must reverse instantaneously without touching the obstruction.
• Manual Emergency Override Verification: Test the red emergency release pull-cord at least once a quarter. With the door closed, disengage the carriage trolley. Manually lift the door to the half-open position (3–4 feet high) and release it. A properly balanced door should hover in place with minimal upward or downward drift. If it snaps open or slams down, spring counterbalance recalibration is required.

Diligent execution of this Garage Door Auto-Reverse Safety Testing safeguards children, pets, vehicles, and warehouse machinery from impact injuries.

Summary & Preventative Maintenance Consultation

Treating your entrance system to a structured Preventative Garage Door Tune-Up Guide drastically diminishes high-cost component breakdown, mitigates emergency service calls, and upholds perimeter security. Simple monthly self-inspections coupled with certified annual professional servicing represent the most cost-effective lifecycle strategy for any building envelope.

Are your garage door springs, weather seals, or operator motors due for replacement, or is your facility looking to upgrade to heavy-duty, polyurethane-insulated sectional doors? Consult the technical engineering experts at Xufeng Door or submit your project details via our Contact Us page to receive custom engineering specifications, replacement hardware, and direct factory support.
