Whether you plan to retrofit an existing uninsulated curtain or replace it with a factory-built solution, this comprehensive garage door thermal insulation guide walks you through thermal dynamics, material comparisons, perimeter sealing, and precise installation protocols.

1. Why Should You Insulate a Garage Door?

Upgrading your door's thermal envelope delivers substantial operational and structural dividends:



• Improve Indoor Comfort: Transform a drafty, temperature-extreme garage into a viable year-round workspace, home gym, or climate-controlled staging bay.
• Improve Energy Efficiency: Minimizes thermal transfer across shared building walls, taking continuous load off your central HVAC systems.
• Reduce Outside Noise: The acoustic dampening properties of dense cellular insulation attenuate airborne acoustic vibrations by up to 10–16 dB.
• Improve Door Rigidity: Single-skin sheet metal is prone to flexing and wind chatter. Backing or sandwiching panels with dense insulation significantly increases panel deflection resistance against windloads.
• Protect Temperature-Sensitive Items: Safeguards vehicles, paint, battery systems, electronics, and pressure washers from freezing winters and sweltering summer heat.

2. Does Your Garage Door Need Insulation?

Before purchasing retrofit materials, assess your current envelope condition:



• Signs Your Garage Door Is Poorly Insulated: Visible condensation on the inner metal skin during winter, severe temperature spikes when sunlight hits the door exterior, whistling air leaks during windy days, and excessive outdoor street noise.
• When Insulation May Be Less Important: Free-standing, detached unconditioned carports or basic storage sheds with open attic louvers where ambient thermal retention is unnecessary.
• Check the Whole Garage: Insulation is a holistic building system. Insulating the door will yield limited results if the garage ceiling, exterior framed walls, and attic hatches lack basic batt or drywall insulation.

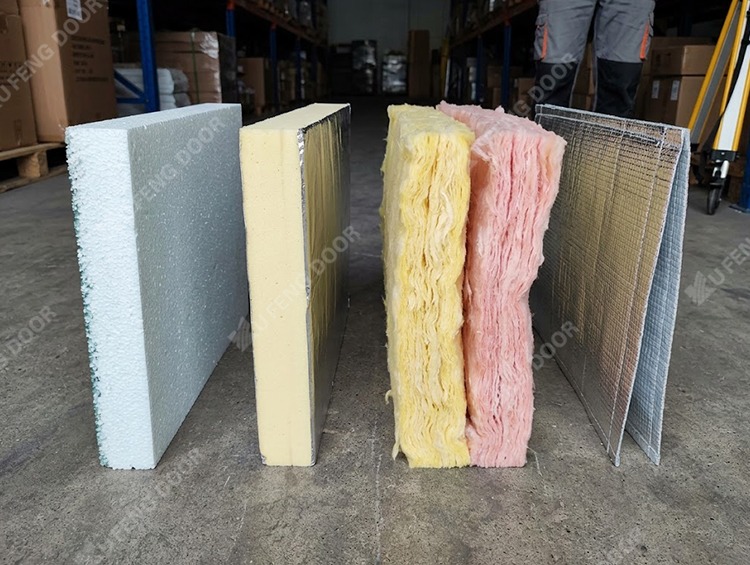

3. What Is the Best Insulation for a Garage Door?

Choosing the right material dictates long-term thermal yield, added panel deadweight, and ease of installation:



• Polystyrene Foam Board (EPS or XPS): Rigid, lightweight expanded (EPS) or extruded (XPS) panels. Easy to cut with a utility knife, water-resistant, and cost-effective, though XPS provides a slightly higher density.
• Polyurethane or Polyisocyanurate Rigid Foam: Foil-faced polyiso or injected polyurethane provides the highest thermal resistance per inch of thickness. Its micro-cellular closed-cell structure serves as the benchmark in modern door engineering.
• Fiberglass Insulation (Batt/Blanket): Often backed with vinyl facing. Economical and pliable, but prone to sagging over repeated door lifting cycles and absorbs airborne moisture if not hermetically sealed.
• Reflective or Radiant Barrier Insulation: Multi-layer reflective aluminum foils with bubble cores. Excellent at bouncing radiant solar heat away in hot climates, but offers low conductive thermal resistance (low nominal R-value) during freezing winters.
• Garage Door Insulation Kits: Pre-packaged DIY kits featuring pre-cut EPS or vinyl-faced fiberglass boards complete with plastic retaining pins.
• Which Material Should You Choose?: For balanced DIY performance, foil-faced rigid EPS/XPS boards are optimal. For maximum thermal isolation in harsh northern climates, upgrading to factory polyurethane injected garage door panels is the definitive engineering solution.

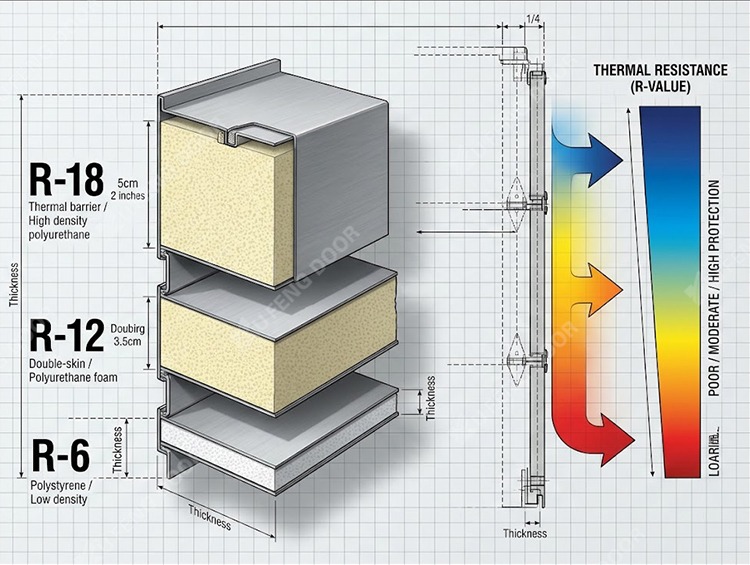

4. What Is the R-Value of Garage Door Insulation?

• What Does R-Value Mean?: R-value measures a material’s thermal resistance to conductive heat flow. The higher the number, the greater the insulating effectiveness.
• What R-Value Do You Need?:
  • Mild climates / detached garages: R-6 to R-9.
  • Cold northern climates / attached heated garages: R-12 to R-18.
• Insulation Thickness vs. Performance: Thermal resistance is proportional to core thickness and cell density. However, retrofit panels cannot exceed the depth of the door panel’s structural steel stiles (typically 1.5 to 2 inches).
• Understand Advertised Garage Door R-Values: Beware of manufacturer claims. DIY panel inserts only address conductive heat through the steel face, leaving open thermal bridges along steel hinges and uninsulated vertical tracks.

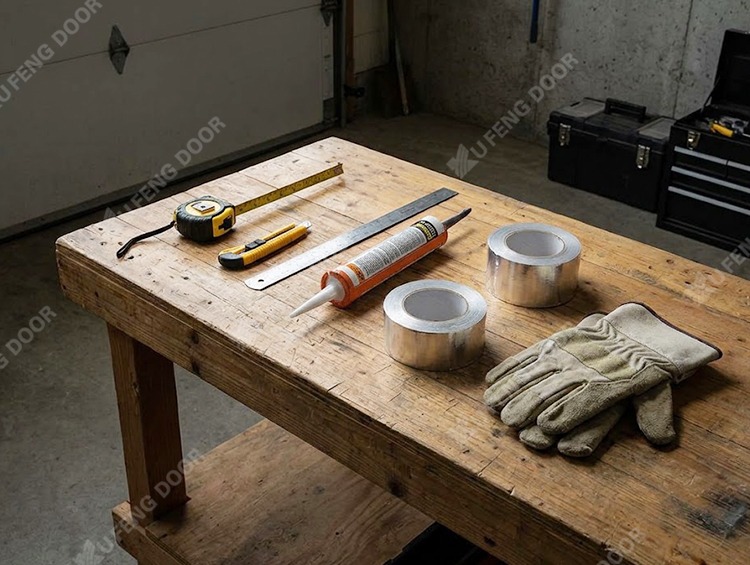

5. Tools and Materials You Need

Prepare your job site with the following gear:



• Materials: Rigid foam boards (EPS/XPS with radiant foil backing), high-adhesion foil tape, specialized foam-compatible construction adhesive (polyurethane or water-based), heavy-duty EPDM bottom seal, and perimeter vinyl weatherstripping.
• Tools: Retractable utility knife with fresh blades, metal straight edge / carpenter square, steel measuring tape, caulking gun, rubbing alcohol with microfiber cleaning rags, cordless drill with magnetic socket bits, and protective eye gear.

6. How to Insulate a Garage Door Step by Step

Follow this disciplined 9-step procedure to complete your insulated sectional garage door retrofit:



• Step 1 — Identify Your Garage Door Type: Determine whether your door is a multi-panel sectional overhead door or a one-piece tilt-up canopy door. (This procedure is calibrated for sectional doors).
• Step 2 — Inspect the Door: Ensure hinges, rollers, and tracks operate smoothly without binding. Clean the inner steel faces with rubbing alcohol to remove grease.

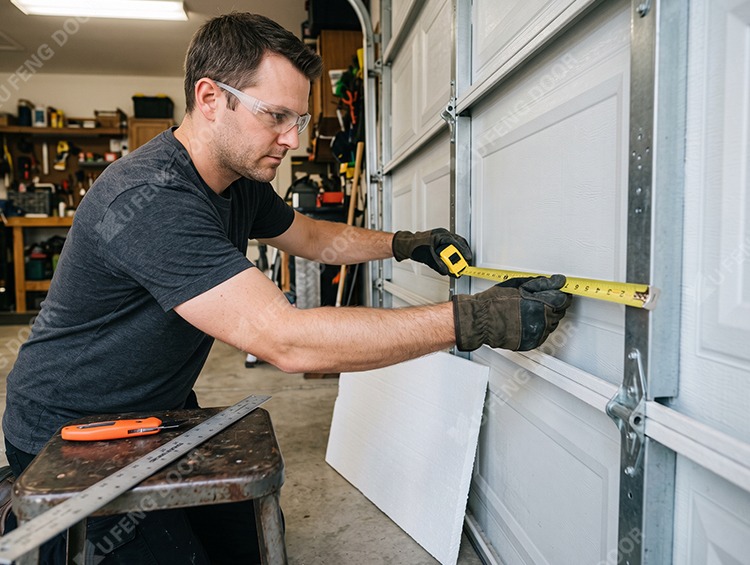

• Step 3 — Measure Each Panel: Measure the horizontal width and vertical height of each panel recess. Note: Panels may vary slightly across top and bottom sections—measure each individually.
• Step 4 — Choose Compatible Insulation: Select rigid foam thickness that sits flush inside the panel channels without protruding past the vertical stile edges.
• Step 5 — Cut the Insulation to Size: Mark dimensions using your metal straight edge. Score the foam with a sharp utility knife and snap cleanly along the line.
• Step 6 — Install and Secure the Insulation: Apply adhesive beads to the metal panel back (or use mechanical retainer clips). Slide the foam sheet into the structural stiles, foil face pointing inward toward the garage. Seal all perimeter seams with heavy-duty foil tape to eliminate thermal bypass.
• Step 7 — Seal the Garage Door Perimeter: Inspect the vertical side frames and top lintel for draft gaps.
• Step 8 — Test the Door (Crucial Spring Safety Check): Disengage the electric opener and lift the door manually. A properly balanced door should lift smoothly and remain stationary when opened midway. Warning: If the added deadweight causes the door to drop or feel excessively heavy, stop using the automatic opener and hire a certified technician to recalibrate your torsion springs.
• Step 9 — Check the Results: Inspect during peak sunlight to verify that no perimeter gaps remain visible.

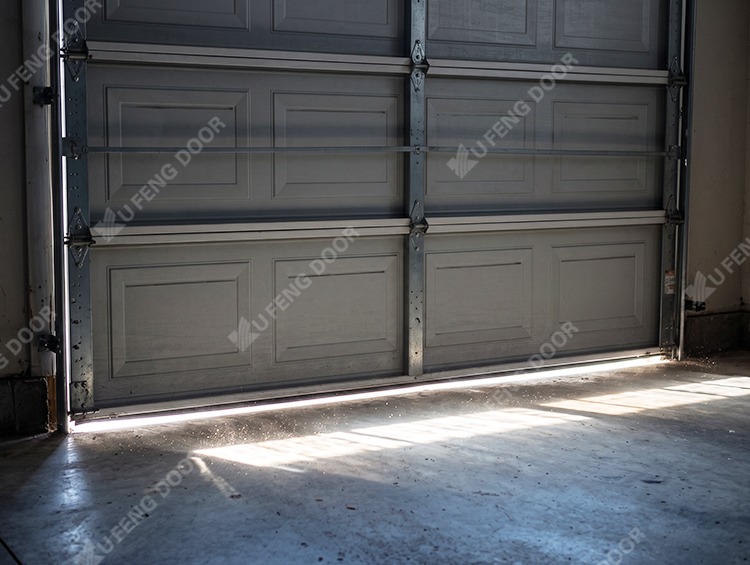

7. How to Seal Gaps Around a Garage Door

Even an R-18 door will fail to conserve energy if gaps around the frame allow continuous air infiltration. Comprehensive garage door perimeter weather sealing is non-negotiable:

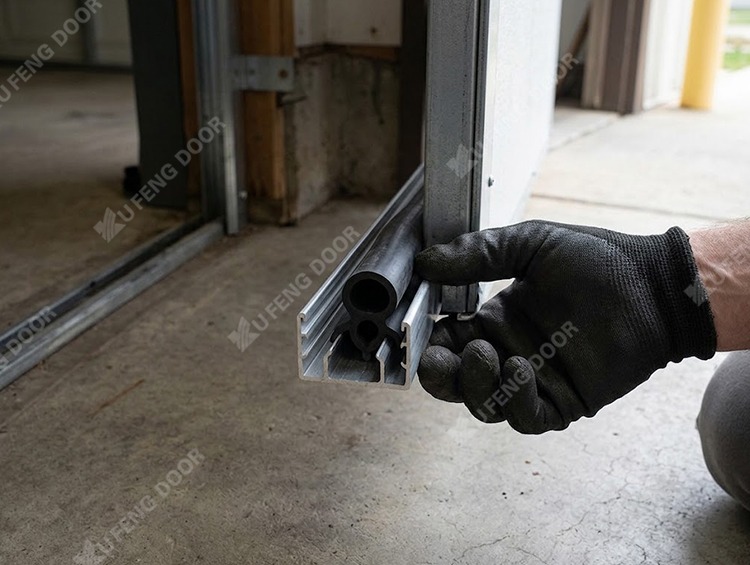

• Replace the Bottom Weather Seal: Slide a heavy-duty U-shaped EPDM rubber astragal into the bottom aluminum retainer channel to seal irregular concrete contours.
• Replace Side and Top Weatherstripping: Install exterior PVC jamb seals with integrated flexible rubber flaps that press snugly against the outer door face when fully closed.
• Check the Floor and Frame: Fill foundation cracks with epoxy mortar, and verify that the wooden or metal door frame is plumb and level.
• Insulation vs. Air Sealing: Insulation resists conductive heat transfer; weatherstripping stops convective draft infiltration. Both must work in synergy to achieve real climate control.

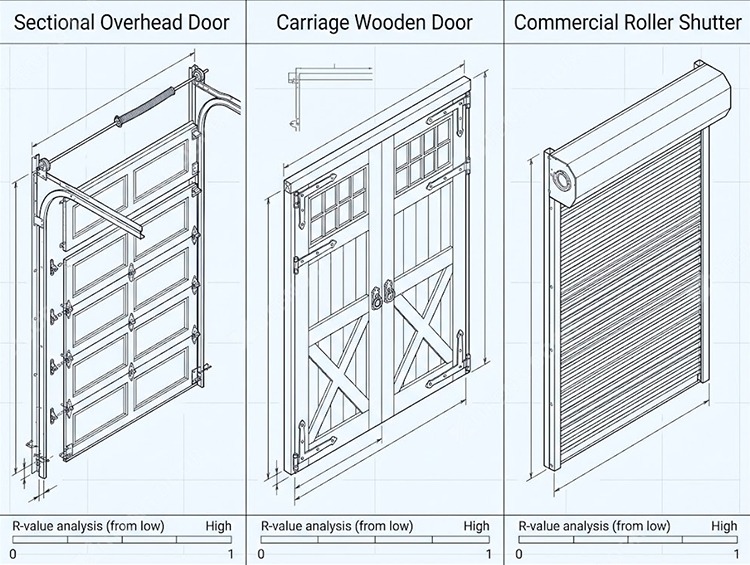

8. Can You Insulate Any Type of Garage Door?

• Sectional Garage Doors: The most compatible and straightforward design for retrofitting with rigid foam inserts.
• Single-Layer Metal Garage Doors: Ideal candidates for retrofit kits, yielding dramatic thermal and acoustic improvements.
• Wooden Garage Doors: Solid timber already provides inherent thermal resistance, but recessed panel styles can be backed with thin rigid boards if properly weather-treated.
• Roller Shutter Garage Doors: Single-skin roll-up shutters cannot accommodate rigid foam inserts, as slats must coil tightly around an overhead barrel. These require purpose-built factory insulated double-wall slats.
• Older or Lightweight Doors: Be extremely cautious. Adding insulation deadweight to rusted, fatigued, or unreinforced lightweight doors can bend tracks and snap counterbalance cables.

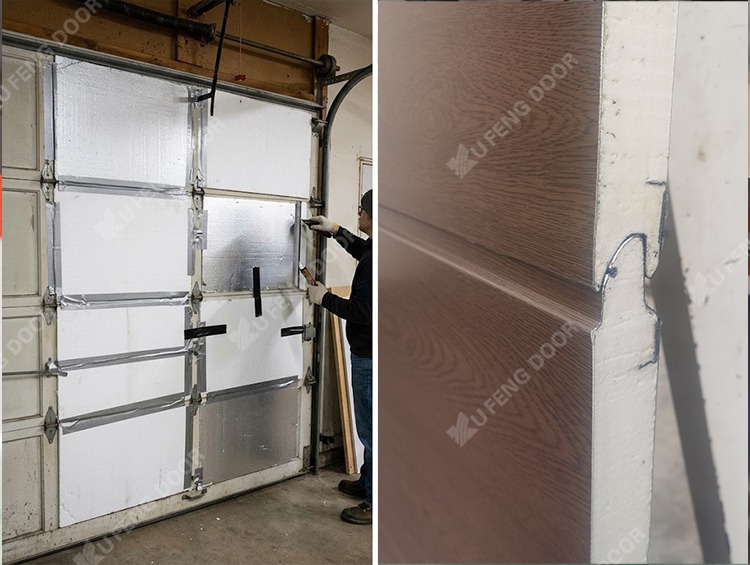

9. DIY Insulation vs. Buying an Insulated Garage Door

• When DIY Insulation Makes Sense: A viable budget alternative for structurally sound, newer single-skin doors in moderate climates where only basic thermal dampening is needed.
• When Replacement May Be Better: When your existing door is dented, exhibits failing counterbalance springs, has rusted hardware, or requires an R-value greater than R-12.

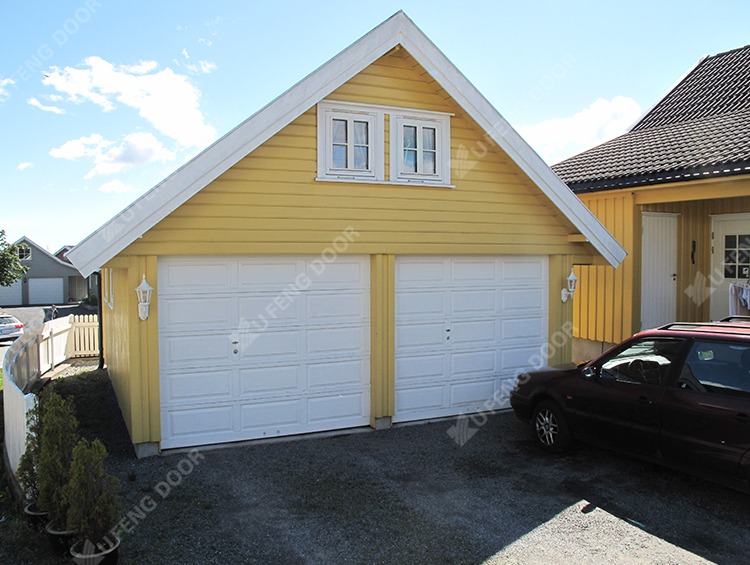

• Advantages of Factory-Insulated Garage Doors:
  1. Continuous Monolithic Core: Factory polyurethane injected garage door panels feature high-density CFC-free PU injected under extreme hydraulic pressure (sandwich construction: Steel + PU Foam + Steel).
  2. Thermal Break Technology: Engineered thermal breaks separate exterior and interior steel skins, eliminating conductive thermal bridging entirely.
  3. Precision Balanced Counterbalance: Factory springs and heavy-duty nylon-bearing rollers are calculated precisely for total panel weight.
  4. Clean Architectural Aesthetics: No exposed foam, glue, or peelable tape seams.
• What to Look for in an Insulated Garage Door: Choose heavy-duty double-skin galvanized steel (0.4mm–0.5mm skin), 40mm to 50mm injected polyurethane core (R-14 to R-17), full-perimeter co-extruded EPDM gaskets, and anti-pinch safety joints.



Plan Your Upgrade with Xufeng Door:
Looking for an engineered entrance solution with maximum thermal performance and durability? Contact the technical specialists at Xufeng Door or reach out through our Contact Us portal. Share your opening dimensions, desired R-value, preferred panel color/window inserts, project volume, and delivery destination to receive a detailed engineering quote.

10. Conclusion: Choose the Right Garage Door Insulation Solution

Taking the time to insulate your garage door transforms your garage into an energy-efficient, quiet, and comfortable space. While DIY foam kits offer an accessible weekend fix for single-layer steel panels, high-performance facilities and severe climates demand the permanent thermal barrier of a factory-engineered sandwich door.



Ready to eliminate drafts and lower your facility utility bills? Explore our heavy-duty residential and commercial insulated door lines at Xufeng Door or contact our engineering consultants via the Contact Us page today for custom specifications and factory-direct pricing.



FAQ

1. Is it worth insulating a garage door?

Yes. Insulating a garage door reduces heat loss through the building envelope by up to 20–25%, dampens external street noise, stabilizes indoor garage temperatures, and strengthens thin metal panels against wind deflection.



2. What is the best insulation for a garage door?

For DIY retrofitting, foil-faced rigid expanded polystyrene (EPS) or extruded polystyrene (XPS) offers the best combination of weight and thermal yield. For ultimate performance, factory-manufactured sandwich panels with continuous injected polyurethane provide the highest R-value per inch.



3. Can I insulate my garage door myself?

Yes. A typical single or double sectional door can be retrofitted in 2 to 4 hours using a utility knife, measuring tape, foam adhesive, and pre-cut insulation boards.



4. What R-value should a garage door have?

For mild climates, an R-value of R-6 to R-9 is sufficient. For attached garages in regions with freezing winters or scorching summers, aim for R-12 to R-17.



5. Does garage door insulation keep heat out in summer?

Yes. Reflective radiant barriers and high-density foam block conductive and radiant solar heat, significantly lowering garage interior temperatures during peak summer months.



6. Will insulating my garage door reduce energy bills?

Yes. If your garage shares interior walls or ceilings with conditioned living spaces, door insulation reduces HVAC cycling, leading to tangible utility savings.



7. Can I insulate a garage door without removing it?

Yes. Sectional garage doors are insulated while hanging closed on their tracks. Panels are measured, cut, and fitted directly into the exposed interior cavities.



8. How do I stop cold air coming through my garage door?

In addition to insulating the door face, install continuous top and side vinyl weatherstripping and replace worn bottom EPDM rubber astragals to seal air infiltration gaps.



9. Does insulating a garage door make it quieter?

Yes. Dense foam cores absorb mechanical panel vibrations and attenuate airborne external noise by 10 to 16 decibels.



10. Can insulation damage a garage door?

If too much weight is added during a DIY retrofit, the door can become mechanically unbalanced. This causes excessive strain on the opener motor and can damage tracks or break counterbalance cables. Always check door balance after installing insulation.



11. Is it better to insulate an existing door or buy an insulated garage door?

If your current door is mechanically sound and you have a limited budget, a DIY kit is a practical stopgap. If the door is dented, aged, or you require maximum thermal barrier performance (R-14+), investing in a factory-built insulated door is significantly superior in longevity and ROI.



12. How long does garage door insulation last?

Rigid foam boards (EPS/XPS) and polyurethane cores last 15 to 20+ years without degrading, provided they are shielded from physical punctures and water leaks. Perimeter weather seals typically require replacement every 3 to 5 years.
