However, high operating velocity (up to 1.5 – 2.0 m/s) and intense daily cycling subject mechanical fasteners, photo sensors, and transmission assemblies to continuous kinetic stress. Establishing an on-site Spiral Door Preventative Maintenance routine is neither labor-prohibitive nor technically intimidating. By following this standardized daily, weekly, and monthly maintenance framework, facility engineers can preemptively eliminate operational downtime, safeguard personnel, and protect site investments.

1. Daily Inspection: Pre-Shift Visual & Operational Safety Checks

The daily walkthrough requires only two to three minutes before high-throughput shifts commence. Frontline operators can conduct this inspection on-site to verify core structural condition and safety sensor responsiveness:

• Visual Curtain & Track Inspection: Visually scan the aluminum curtain panel surface for structural denting, deep scrapes, or impact marks caused by material handling carts. Inspect the ground track threshold and side guide profiles to confirm zero foreign debris, pallet splinters, or gravel accumulation.
• Acoustic & Motion Monitoring: Trigger a full opening and closing cycle. Observe the slat elevation along the spiral coiling path. Verify that movement remains smooth, balanced, and free from abnormal vibrations, motor humming, metal grinding, or frictional screeches.

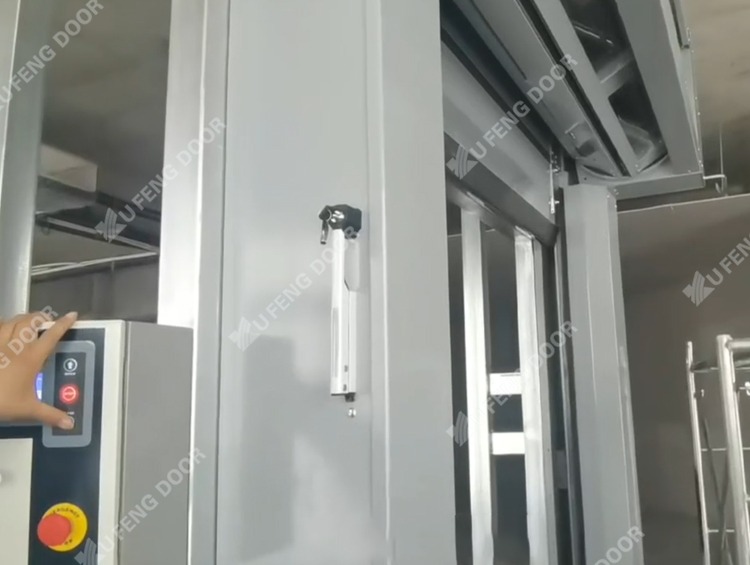

• Safety Sensor Verification:
  • Execute a manual depression test on the wall-mounted emergency stop button; the door curtain must stop motion immediately without coasting.
  • Test the active infrared safety light curtain or bottom safety edge airway by passing a test paddle across the beam during downward descent—the curtain must automatically halt and reverse to the fully open position.

Consistent execution of this High Speed Spiral Door Daily Inspection ensures that mechanical misalignments and sensor faults are identified before they escalate into high-cost drive failures.

2. Weekly Maintenance: Deep Surface Cleaning & Perimeter Seal Checks

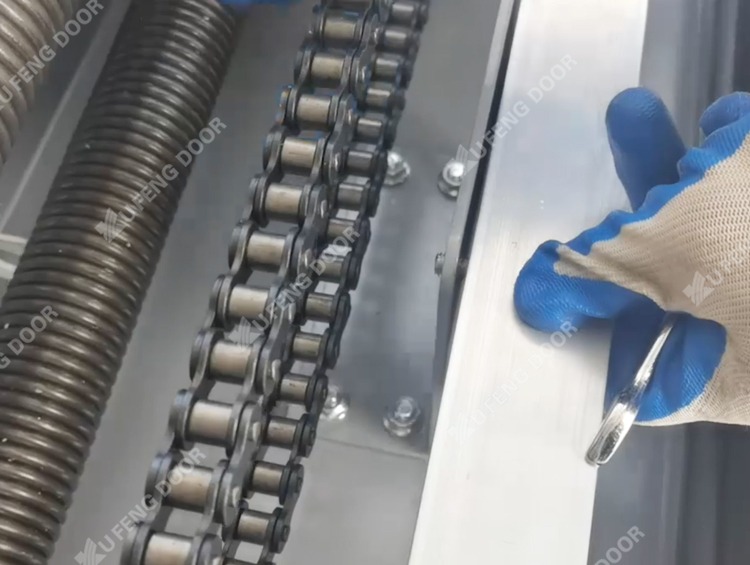

Over continuous cycling, environmental dust, fine sand, and humidity create abrasive grime within track channels and degrade perimeter weather barriers. Weekly maintenance focuses on physical hygiene and flexible consumables:

• Aluminum Curtain Surface Cleaning: Wipe down the anodized or powder-coated aluminum door panels using a clean dry cloth or a microfiber towel dampened with warm water. Crucial technical rule: Never use strong acid, alkaline solutions, or abrasive scouring pads, as chemical aggression strips protective surface coatings and accelerates corrosion.
• Track Debris Evacuation: Thoroughly brush out sand, particulate buildup, and pack debris along the vertical aluminum tracks and bottom receptor cups to prevent roller sticking.
• Perimeter EPDM Weatherseal Inspection: Examine the vertical EPDM rubber weatherstrips along the side frames, top header brush seals, and the bottom sealing astragal. Look for tears, hardening, cracking, or detachment. Flexible seals prevent environmental draft leakage, insect ingress, and moisture infiltration.
• Safety Device Mechanical Check: Re-confirm that the bottom wireless airbag sensing tube is resilient, securely seated, and free from external punctures.

Incorporating this Industrial Roll Up Door Weekly Cleaning protocol keeps guide channels frictionless and preserves thermal integrity.

3. Monthly Maintenance: Component Lubrication & Mechanical Fastener Torque

Monthly preventative servicing requires scheduled technical attention from in-house facility engineers or certified maintenance personnel. This phase targets powertrain mechanics, fastener integrity, and electrical safety:

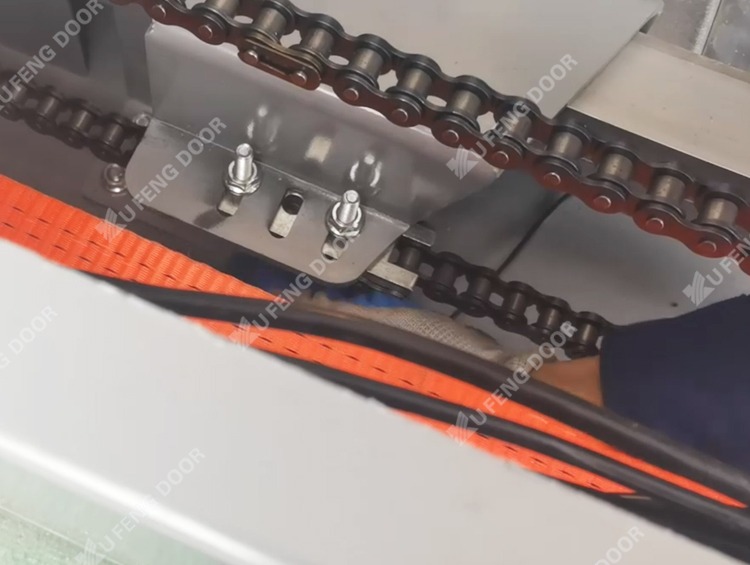

• Transmission Lubrication Protocols:
  • Apply specialized low-tack synthetic grease or industrial transmission oil to the drive chain links, bearing units, and structural hinge connection pins.
  • Important technical caution: Avoid over-lubricating. Excessive grease accumulation attracts environmental dust and turns into an abrasive paste that damages guide rollers. The circular spiral coiling track itself should remain clean and dry.
• Structural Hardware & Anchor Bolt Tightening: High-frequency dynamic vibrations inevitably stress hardware. Systematically torque all mounting bolts across the main door frame anchors, drive motor mounting brackets, and overhead bearing brackets. Tighten any loose fasteners immediately to prevent structural chassis deformation.
• Chain & Belt Tension Calibration: Inspect the primary drive chains or timing belts for slack, operational wobble, or tooth misalignment. Make fine adjustments to mechanical tensioners following factory torque tolerances.
• Electrical Circuit & Control Cabinet Audit: Open the main control enclosure (ensure power isolation beforehand). Check terminal connection blocks for thermal discoloration, secure all wiring harnesses, blow out internal dust with low-pressure dry air, and inspect error log diagnostics on the digital inverter screen.

Following structured Rapid Spiral Door Lubrication Protocols stabilizes mechanical clearances and prevents premature wear on heavy-duty drive components.

Summary & Preventative Maintenance Consultation

Industrial spiral doors represent a high-performance asset engineered for speed, thermal isolation, and decades of reliable service. Sustaining this performance demands consistent execution of High Performance Door Safety Device Testing, systematic surface cleaning, and disciplined lubrication intervals.
